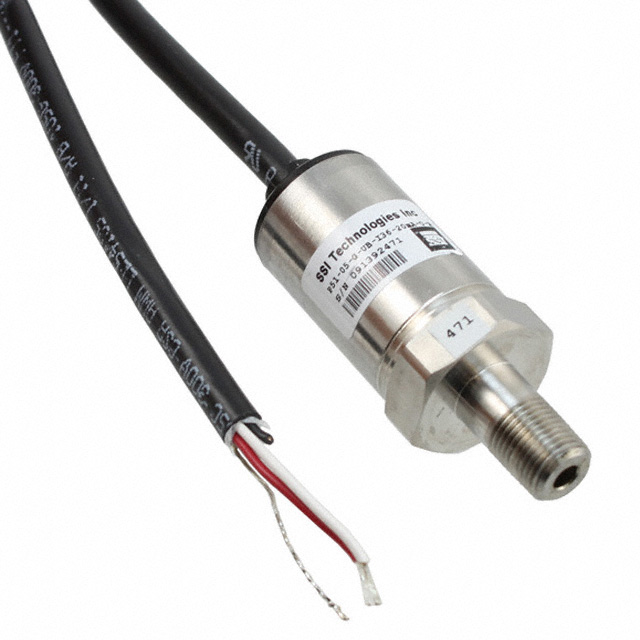

P51-05-G-UB-I36-20MA-000-000
ActiveMcGill Microwave Systems
SENSOR 5 PSIG 20MA 1/8 - 27 NPT
P51-05-G-UB-I36-20MA-000-000
ActiveMcGill Microwave Systems
SENSOR 5 PSIG 20MA 1/8 - 27 NPT
Description
General part information
P51-05-G-UB-I36-20MA-000-000
SENSOR 5 PSIG 20MA 1/8 - 27 NPT
Technical Specifications
Parameters and characteristics for this part
| Specification | P51-05-G-UB-I36-20MA-000-000 |
|---|---|
| Accuracy | 2 % |
| Applications | Industrial Automation |
| Features | Temperature Compensated, Amplified Output |
| Operating Pressure | 5 PSI |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output Current (Max) | 20 mA |
| Output Current (Min) | 4 mA |
| Output Type | Analog Current |
| Package / Case | Cylinder |
| Port Diameter | 0.125 " |
| Port Feature | NPT |
| Port Gender | Male |
| Port Style | Threaded |
| Pressure Type | Vented Gauge |
| Termination Length | 3 ft |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 8 V |
