CP854705-2
ActiveSame Sky (Formerly CUI Devices)

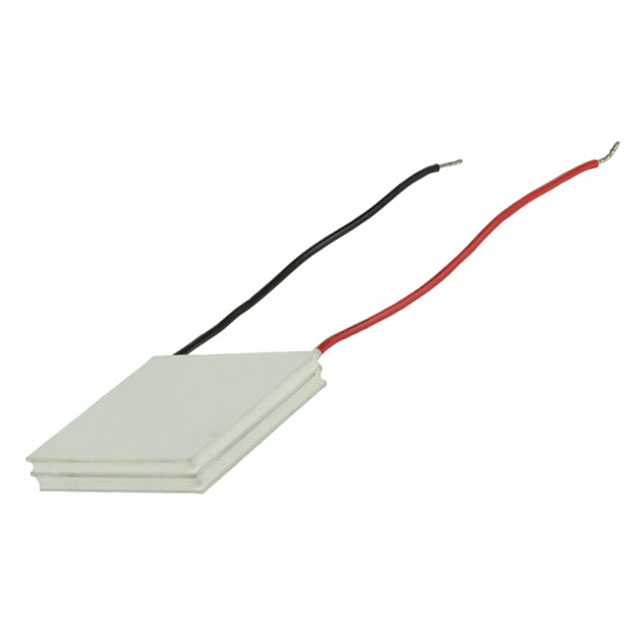

PELTIER, 40 X 40 X 7.05 MM, 8.5
CP854705-2
ActiveSame Sky (Formerly CUI Devices)
PELTIER, 40 X 40 X 7.05 MM, 8.5
Description
General part information
CP854705-2
Peltier Module 51.6W @ 27°C 8.5 A 80°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CP854705-2 |
|---|---|
| Current - Max | 8.5 A |
| Delta Tmax | 85 °C |
| Features | Silicone RTV, Lead Wires, Sealed |
| Height | 7.05 mm |
| Maximum Power Dissipation (Qmax) | 51.6 W |
| Number of Stages | 2 |
| Operating Temperature | 80 °C |
| Resistance | 1.65 Ohms |
| Size / Dimension Length | 40 mm |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 40 mm |
| Voltage - Max | 16.1 V |
