B82111E0000C027
ActiveEPCOS - TDK Electronics
FIXED IND 470UH 300MA 6.5 OHM TH
B82111E0000C027
ActiveEPCOS - TDK Electronics
FIXED IND 470UH 300MA 6.5 OHM TH
Description
General part information
B82111E0000C027

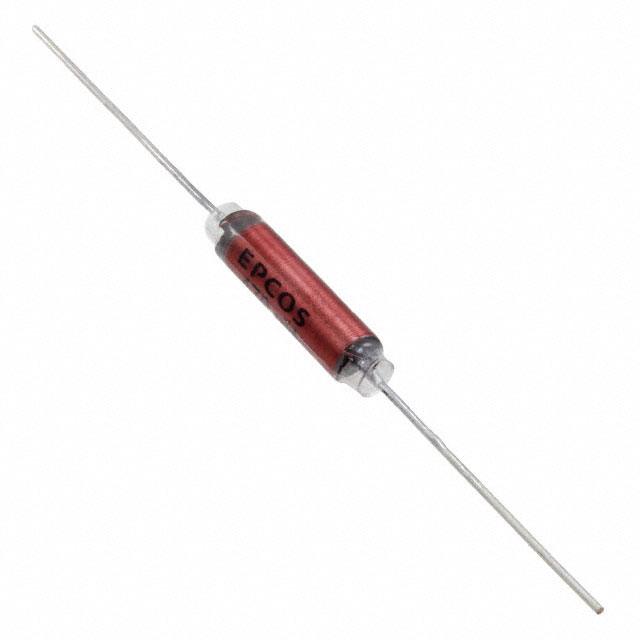

470 µH Unshielded Drum Core, Wirewound Inductor 300 mA 6.5Ohm Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82111E0000C027 |
|---|---|
| Current Rating | 0.3 A |
| DC Resistance (DCR) | 6.5 Ohm |
| Frequency - Self Resonant | 25 MHz |
| Inductance | 0.47 mH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.236 in |
| Size / Dimension Length | 1.024 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
