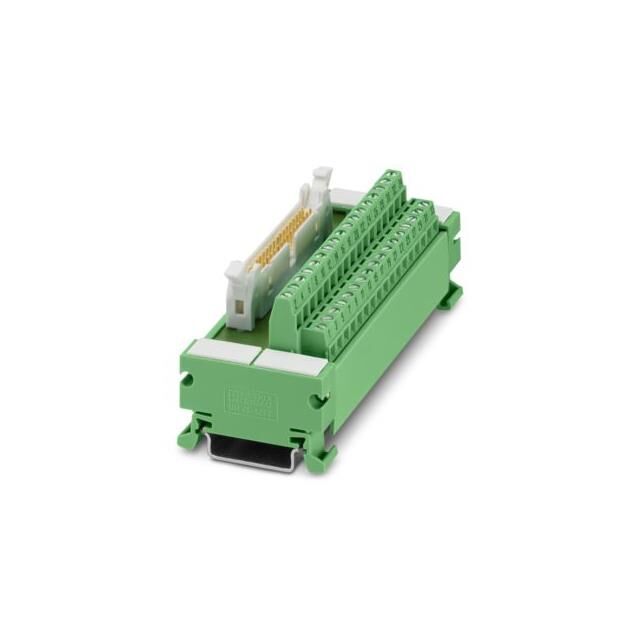

Specification	2962557

Control Side Cable Retainer Type	Latches
Control Side Connection Gender	Male
Control Side Connection Shape	Rectangular
Current Rating (Per Contact)	1 A
Length	2.323 in
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Positions / Poles	14
Process Side Connection	Terminal Blocks, Screw Connection
Voltage - Rated	25 VAC, 60 VDC
Width	1.772 in
Wire Gauge (AWG) (Max)	26 AWG
Wire Gauge (AWG) (Min)	16 AWG
