Description
General part information
PE3VNA4004-24

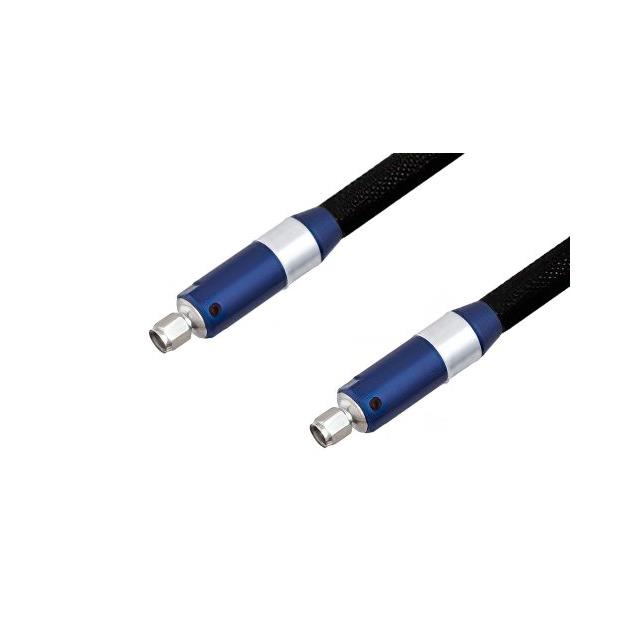

Cable Assembly Coaxial 2.4mm to 2.4mm VNA 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3VNA4004-24 |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 2.4 mm |
| 1st Contact Gender | Male |
| 2nd Connector | Plug |
| 2nd Connector Diameter | 2.4 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | VNA |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 40 Gbps |
| Length | 24 in |
| Operating Temperature | 125 °C |
| Overall Impedance | 50 Ohms |
| Style | 2.4mm to 2.4mm |
