07145-80
ActiveMechatronics Fan Group
FAN CORD 80"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
07145-80
ActiveMechatronics Fan Group
FAN CORD 80"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 07145-80 | 07145 Series |
|---|---|---|
| 1st Connector | Fan Terminal Receptacle 45° | Fan Terminal Receptacle 45° |
| 2nd Connector | Open Wires | NEMA 1-15 Plug, Open Wires |
| Fits Terminal Size [x] | 4.1 | 4.1 |
| Fits Terminal Size [y] | 0.5 | 0.5 |
| Length | 2.03 m | 1.52 - 1270 cm |
| Length | 80 " | 5 - 80 in |
| Length | - | 609.6 mm |
| Length | - | 12 - 24 in |
| Number of Conductors | 2 | 2 |
| Operating Temperature | 105 C | 105 C |
| Style | Female Receptacle to Cable | Female Receptacle to Male Plug, Female Receptacle to Cable |
| Wire Gauge | 18 AWG | 18 AWG |
07145 Series
FAN CORD W/ WALL PLUG 36"
| Part | Number of Conductors | Length | Length | 2nd Connector | 1st Connector | Wire Gauge | Fits Terminal Size [x] | Fits Terminal Size [y] | Operating Temperature | Style | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Fan Group 07145-36P | 2 | 91.44 cm | 36 in | NEMA 1-15 Plug | Fan Terminal Receptacle 45° | 18 AWG | 4.1 | 0.5 | 105 C | Female Receptacle to Male Plug | ||
Mechatronics Fan Group 07145-36 | 2 | 91.44 cm | 36 in | Open Wires | Fan Terminal Receptacle 45° | 18 AWG | 4.1 | 0.5 | 105 C | Female Receptacle to Cable | ||
Mechatronics Fan Group 07145-80 | 2 | 2.03 m | 80 " | Open Wires | Fan Terminal Receptacle 45° | 18 AWG | 4.1 | 0.5 | 105 C | Female Receptacle to Cable | ||
Mechatronics Fan Group 07145-50 | 2 | 1270 mm | 50 in | Open Wires | Fan Terminal Receptacle 45° | 18 AWG | 4.1 | 0.5 | 105 C | Female Receptacle to Cable | ||
Mechatronics Fan Group 07145-6P | 2 | 152.4 mm | 6 in | Open Wires | Fan Terminal Receptacle 45° | 18 AWG | 4.1 | 0.5 | 105 C | Female Receptacle to Male Plug | ||
Mechatronics Fan Group 07145-60P | 2 | 1.52 m | 5 ' | NEMA 1-15 Plug | Fan Terminal Receptacle 45° | 18 AWG | 4.1 | 0.5 | 105 C | Female Receptacle to Male Plug | ||
Mechatronics Fan Group 07145-24P | 2 | NEMA 1-15 Plug | Fan Terminal Receptacle 45° | 18 AWG | 4.1 | 0.5 | 105 C | Female Receptacle to Male Plug | 609.6 mm | 24 in | ||
Mechatronics Fan Group 07145-12 | 2 | 304.8 mm | Open Wires | Fan Terminal Receptacle 45° | 18 AWG | 4.1 | 0.5 | 105 C | Female Receptacle to Cable | 12 in | ||
Mechatronics Fan Group 07145-60 | 2 | 1.52 m | 5 ' | Open Wires | Fan Terminal Receptacle 45° | 18 AWG | 4.1 | 0.5 | 105 C | Female Receptacle to Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.67 | |
| 1 | $ 3.36 | |||
| 10 | $ 3.25 | |||
| 10 | $ 3.55 | |||
| 25 | $ 3.16 | |||
| 25 | $ 3.45 | |||
| 50 | $ 2.97 | |||
| 50 | $ 3.24 | |||
| 100 | $ 2.67 | |||
| 100 | $ 2.91 | |||
| 250 | $ 2.87 | |||
| 300 | $ 2.63 | |||
| 500 | $ 2.69 | |||
| 500 | $ 2.46 | |||
| 1000 | $ 2.42 | |||
| 1000 | $ 2.65 | |||
Description
General part information
07145 Series

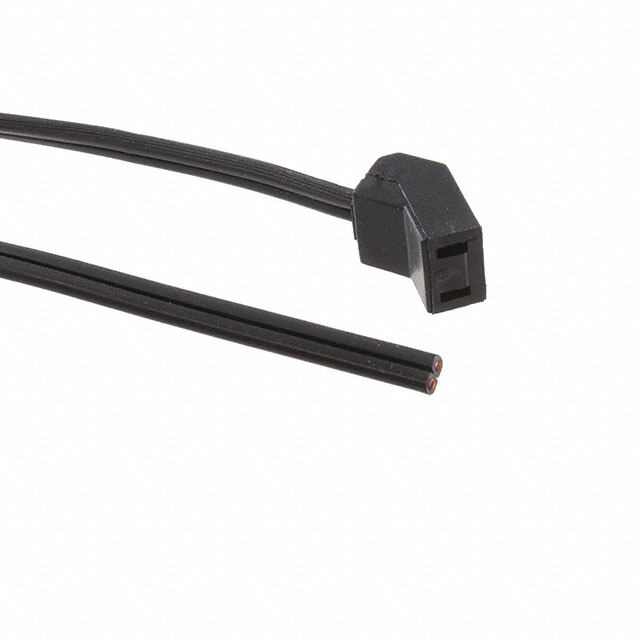

Fan Power Cord Fan Terminal Receptacle 45° 80.0" (2.03m) Open Wires
