11R102C
ActiveINDUCTOR, RADIAL, 1100R SERIES, 1 µH, 3 A, 3 A, 0.02 OHM, ± 20%
Deep-Dive with AI
Search across all available documentation for this part.
11R102C
ActiveINDUCTOR, RADIAL, 1100R SERIES, 1 µH, 3 A, 3 A, 0.02 OHM, ± 20%
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 11R102C | 11R Series |
|---|---|---|
| - | - | |
| Current Rating (Amps) | 3 A | 0.24 - 950 mA |
| DC Resistance (DCR) | 20 mOhm | 20 - 270 mOhm |
| DC Resistance (DCR) | - | 1.1 - 850 mOhm |
| Height - Seated (Max) [Max] [z] | 0.295 in | 0.295 in |
| Height - Seated (Max) [Max] [z] | 7.5 mm | 7.5 mm |
| Inductance | 1 µH | 1 - 330 µH |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Shielding | Unshielded | Unshielded |
| Size / Dimension [diameter] | 5 mm | 5 mm |
| Size / Dimension [diameter] | 0.197 " | 0.197 " |
| Tolerance | 20 % | 10 - 20 % |
| Type | Wirewound | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
11R Series
INDUCTOR, 470UH,10% 0.14A TH RADIAL
| Part | Inductance | Tolerance | Current Rating (Amps) | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) [Max] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Package / Case | Mounting Type | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. 11R474C | |||||||||||||||
Murata Power Solutions Inc. 11R683C | 68 µH | 10 % | 400 mA | Unshielded | 85 °C | -40 °C | 850 mOhm | 0.295 in | 7.5 mm | Wirewound | 5 mm | 0.197 " | Radial, Vertical Cylinder | Through Hole | |
Murata Power Solutions Inc. 11R102C | 1 µH | 20 % | 3 A | Unshielded | 85 °C | -40 °C | 0.295 in | 7.5 mm | Wirewound | 5 mm | 0.197 " | Radial, Vertical Cylinder | Through Hole | 20 mOhm | |
Murata Power Solutions Inc. 11R334C | |||||||||||||||
Murata Power Solutions Inc. 11R102C | |||||||||||||||
Murata Power Solutions Inc. 11R152C | 1.5 µH | 20 % | 2.4 A | Unshielded | 85 °C | -40 °C | 30 mOhm | 0.295 in | 7.5 mm | Wirewound | 5 mm | 0.197 " | Radial, Vertical Cylinder | Through Hole | |
Murata Power Solutions Inc. 11R223C | 22 µH | 10 % | 650 mA | Unshielded | 85 °C | -40 °C | 0.295 in | 7.5 mm | Wirewound | 5 mm | 0.197 " | Radial, Vertical Cylinder | Through Hole | 270 mOhm | |
Murata Power Solutions Inc. 11R473C | 47 µH | 10 % | 0.5 A | Unshielded | 85 °C | -40 °C | 540 mOhm | 0.295 in | 7.5 mm | Wirewound | 5 mm | 0.197 " | Radial, Vertical Cylinder | Through Hole | |
Murata Power Solutions Inc. 11R224C | |||||||||||||||
Murata Power Solutions Inc. 11R104C | 100 µH | 10 % | 350 mA | Unshielded | 85 °C | -40 °C | 1.1 Ohm | 0.295 in | 7.5 mm | Wirewound | 5 mm | 0.197 " | Radial, Vertical Cylinder | Through Hole |
Description
General part information
11R Series

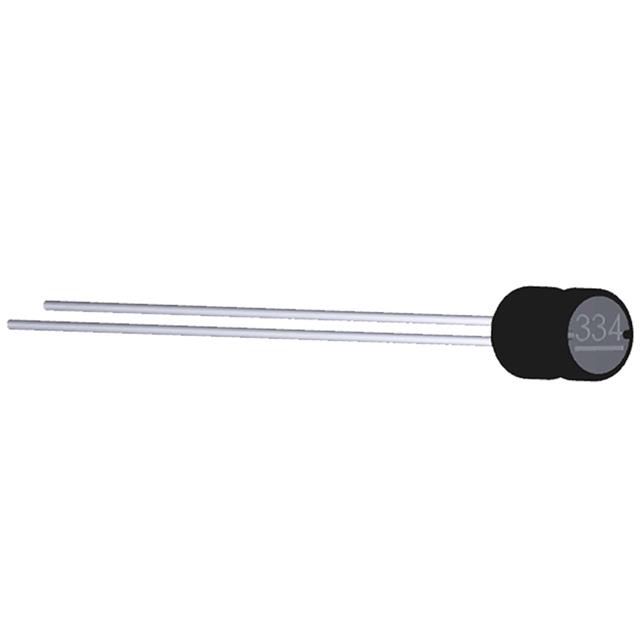

The 11R102C is a 1µH Radial Lead Inductor with an UL VW-1 rated sleeving and bright tin pin finish. This compact size inductor features low DC resistance and backward compatible with Sn/Pb soldering systems. The 1100R series is a general purpose range of inductor suitable for low to medium current applications. Its small footprint makes ideal for high density applications where a chip inductor will not cope with the power requirement.
