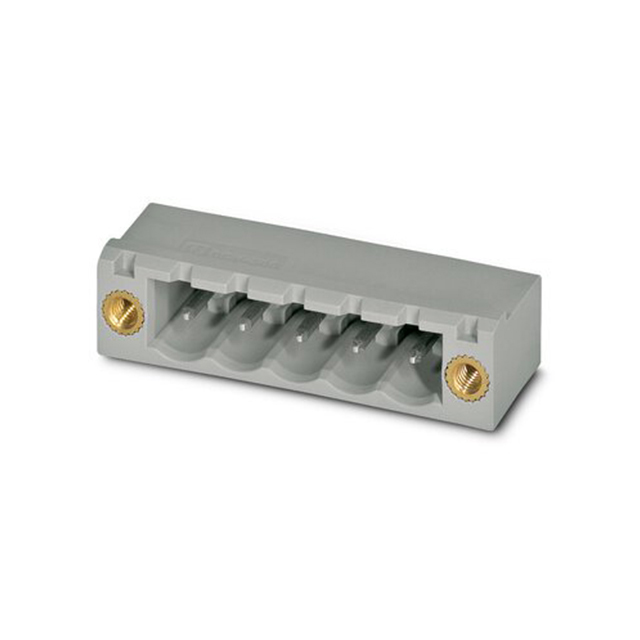

Pluggable Terminal Blocks BCH-508HF-20 GN 5.08 MM HEADER
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 5452352 | BCH Series |
|---|---|---|
| Color | Black | Green, Black |
| Contact Mating Finish | Tin | Tin |
| Contact Tail Length | 3.5 mm | 3.4 - 3.5 mm |
| Contact Tail Length | 0.138 in | 0.134 - 0.138 in |
| Current - IEC | 12 A | 8 - 12 A |
| Current - UL | - | 8 A |
| Features | Mating Flange | Mating Flange |
| Header Orientation | 90°, Right Angle | 90°, Right Angle |
| Housing Material | - | Polyamide (PA), Nylon |
| Insulation Height | 8.61 mm | 7.25 - 8.61 mm |
| Insulation Height | 0.339 " | 0.285 - 0.339 in |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Number of Positions | - | 2 - 23 positions |
| Pitch [x] | 5 mm | 3.5 - 5 mm |
| Pitch [x] | 0.197 in | 0.138 - 0.197 in |
| Positions Per Level | 3 | 2 - 23 |
| Termination Style | Solder | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) |
| Voltage - IEC | 320 V | 160 - 400 V |
| Voltage - UL | 300 V | 250 - 300 V |
Pluggable Terminal Blocks BCH-508HF-20 GN 5.08 MM HEADER
| Part | Voltage - IEC | Housing Material | Number of Positions | Termination Style | Color | Number of Levels | Positions Per Level | Mounting Type | Material Flammability Rating | Current - IEC | Contact Mating Finish | Type | Header Orientation | Pitch [x] | Pitch [x] | Voltage - UL | Current - UL | Contact Tail Length | Contact Tail Length | Insulation Height | Insulation Height | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 5445630 | 400 V | Polyamide (PA), Nylon | 22 positions | Solder | Green | 1 | 22 | Through Hole | UL94 V-0 | 12 A | Tin | Header, Male Pins, Shrouded (4 Side) | 90°, Right Angle | 5 mm | 0.197 in | 300 V | ||||||
Phoenix Contact 5441362 | 320 V | Polyamide (PA), Nylon | 4 | Solder | Green | 1 | 4 | Through Hole | UL94 V-0 | 8 A | Tin | Header, Male Pins, Shrouded (4 Side) | 90°, Right Angle | 3.5 mm | 0.138 in | 300 V | 8 A | 3.4 mm | 0.134 in | 0.285 in | 7.25 mm | |
Phoenix Contact 5452359 | 320 V | 10 | Solder | Black | 1 | 10 | Through Hole | 12 A | Tin | Header, Male Pins, Shrouded (4 Side) | 90°, Right Angle | 5 mm | 0.197 in | 300 V | 3.5 mm | 0.138 in | 0.339 " | 8.61 mm | Mating Flange | |||
Phoenix Contact 5452350 | 160 V | 20 | Solder | Black | 1 | 20 | Through Hole | 8 A | Tin | Header, Male Pins, Shrouded (4 Side) | 90°, Right Angle | 3.81 mm | 0.15 in | 300 V | 8 A | 3.4 mm | 0.134 in | 0.291 in | 7.4 mm | Mating Flange | ||
Phoenix Contact 5452313 | 160 V | 2 | Solder | Black | 1 | 2 | Through Hole | 8 A | Tin | Header, Male Pins, Shrouded (4 Side) | 90°, Right Angle | 3.5 mm | 0.138 in | 250 V | 8 A | 3.4 mm | 0.134 in | 0.291 in | 7.4 mm | Mating Flange | ||
Phoenix Contact 5452056 | 320 V | 12 | Solder | Black | 1 | 12 | Through Hole | 12 A | Tin | Header, Male Pins, Shrouded (4 Side) | 90°, Right Angle | 5 mm | 0.197 in | 300 V | 3.5 mm | 0.138 in | 0.339 " | 8.61 mm | ||||
Phoenix Contact 5445287 | 400 V | Polyamide (PA), Nylon | Solder | Green | 1 | 5 | Through Hole | UL94 V-0 | 12 A | Tin | Header, Male Pins, Shrouded (4 Side) | 90°, Right Angle | 5 mm | 0.197 in | 300 V | 3.5 mm | 0.138 in | 0.339 " | 8.61 mm | Mating Flange | ||
Phoenix Contact 5445504 | 400 V | Polyamide (PA), Nylon | 9 | Solder | Green | 1 | 9 | Through Hole | UL94 V-0 | 12 A | Tin | Header, Male Pins, Shrouded (4 Side) | 90°, Right Angle | 5 mm | 0.197 in | 300 V | ||||||
Phoenix Contact 5445643 | 400 V | Polyamide (PA), Nylon | 23 | Solder | Green | 1 | 23 | Through Hole | UL94 V-0 | 12 A | Tin | Header, Male Pins, Shrouded (4 Side) | 90°, Right Angle | 5 mm | 0.197 in | 300 V | ||||||
Phoenix Contact 5452352 | 320 V | Solder | Black | 1 | 3 | Through Hole | 12 A | Tin | Header, Male Pins, Shrouded (4 Side) | 90°, Right Angle | 5 mm | 0.197 in | 300 V | 3.5 mm | 0.138 in | 0.339 " | 8.61 mm | Mating Flange |
