1-1609991-1

Obsolete

TE Connectivity Corcom Filters

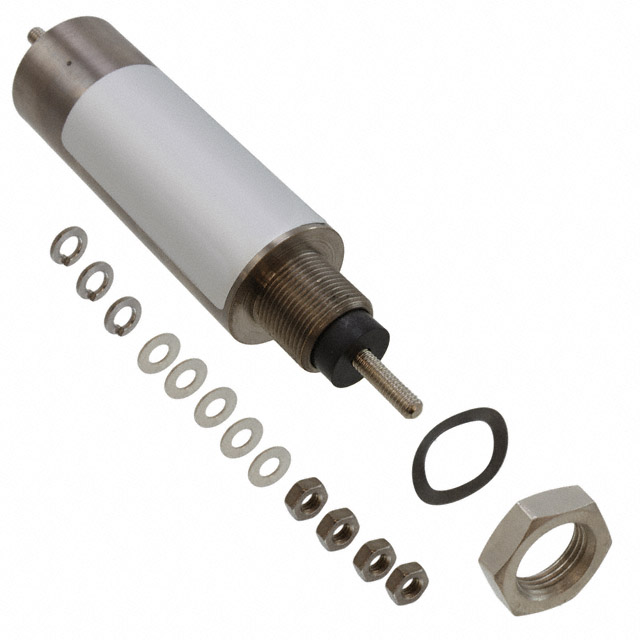

CAP FEEDTHRU 0.022UF 130V AXIAL

Search across all available documentation for this part.

Obsolete

TE Connectivity Corcom Filters

CAP FEEDTHRU 0.022UF 130V AXIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

CAP FEEDTHRU 0.01UF 130V AXIAL

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Current	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) (Max) [Max]	Capacitance	Thread Size	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [x]
TE Connectivity Corcom Filters 1609991-3	20 mm	0.787 in	2.402 in	61 mm	Axial - Threaded Terminals	32 A	-40 °C	60 °C	4 mOhm	10000 pF	M4	130 V
TE Connectivity Corcom Filters 1-1609991-1	25 mm	0.984 "	2.717 in	69 mm	Axial - Threaded Terminals	16 A	-40 °C	60 °C	4 mOhm	0.022 µF	M4	130 V
TE Connectivity Corcom Filters 2-1609991-3	54 mm			144 mm	Axial - Threaded Terminals	100 A	-40 °C	60 °C	2 mOhm	1 µF	M8	130 V	2.126 "	5.669 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

0.022 µF Feed Through Capacitor 130V 16 A 4mOhm Axial - Threaded Terminals
