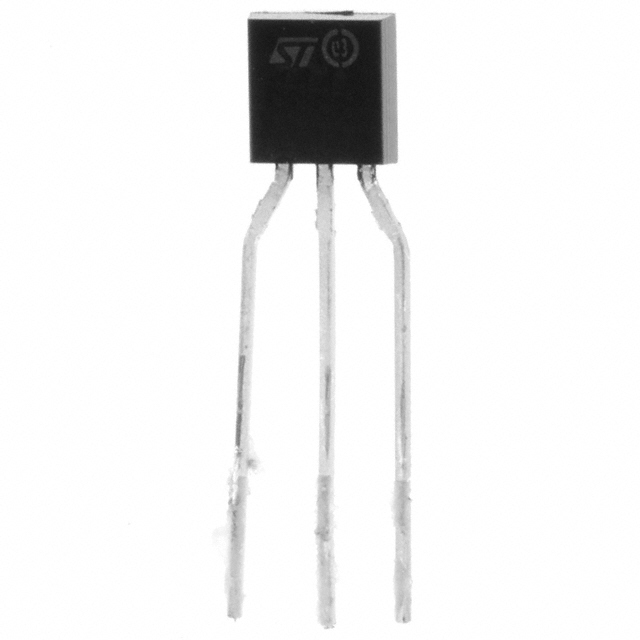

2STL1360

Active

STMicroelectronics

TRANS NPN 60V 3A TO92L

Search across all available documentation for this part.

Active

STMicroelectronics

TRANS NPN 60V 3A TO92L

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2STL1360	2STL Series

Current - Collector (Ic) (Max) [Max]	3 A	1 - 3 A
Current - Collector Cutoff (Max) [Max]	100 nA	10 - 100 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	160	60 - 160
Frequency - Transition	130 MHz	130 MHz
Mounting Type	Through Hole	Through Hole
Operating Temperature	150 °C	150 °C
Package / Case	TO-92-3 Long Body, TO-226-3	TO-92-3 Long Body, TO-226-3
Power - Max [Max]	1.2 W	1.2 - 1.5 W
Supplier Device Package	TO-92L	TO-92MOD, TO-92L
Transistor Type	NPN	NPN
Vce Saturation (Max) @ Ib, Ic	500 mV	1 - 500 V
Voltage - Collector Emitter Breakdown (Max)	60 V	60 - 400 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

TRANS NPN 400V 1A TO92MOD

Part	Power - Max [Max]	Transistor Type	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Package / Case	Operating Temperature	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max)	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector (Ic) (Max) [Max]	Frequency - Transition
STMicroelectronics 2STL2580	1.5 W	NPN	10 µA	TO-92MOD	TO-226-3, TO-92-3 Long Body	150 °C	1 V	400 V	Through Hole	60	1 A
STMicroelectronics 2STL1360	1.2 W	NPN	100 nA	TO-92L	TO-226-3, TO-92-3 Long Body	150 °C	500 mV	60 V	Through Hole	160	3 A	130 MHz
STMicroelectronics 2STL2580-AP	1.5 W	NPN	10 µA	TO-92MOD	TO-226-3, TO-92-3 Long Body	150 °C	1 V	400 V	Through Hole	60	1 A

General part information

Bipolar (BJT) Transistor NPN 60 V 3 A 130MHz 1.2 W Through Hole TO-92L
