AA90U-480B-R

Active

Phihong USA

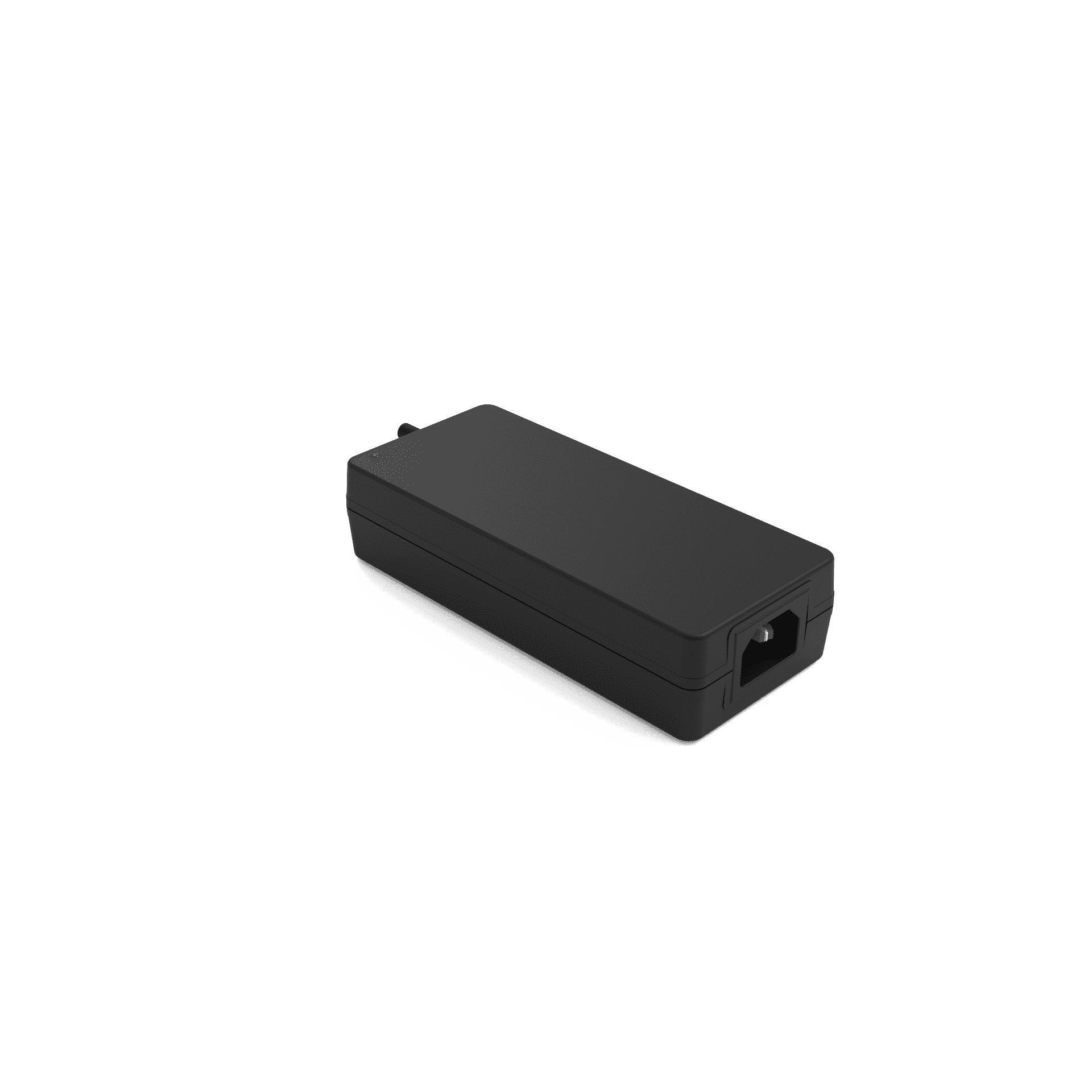

AC/DC DESKTOP ADAPTER 48V 90W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AA90U-480B-R

Active

Phihong USA

AC/DC DESKTOP ADAPTER 48V 90W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AA90U-480B-R	AA90 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cULus, UKCA, cUL, CE	cULus, UKCA, cUL, CE
Cord Length	1.5 m	1.2 - 1.5 m
Cord Length	59 in	47 - 59 "
Current - Output (Max) [Max]	1.875 A	1.67 - 7.5 A
Efficiency	Level VI	Level VI
Form	Desktop (Class I)	Desktop (Class I)
Input Connector	IEC 320-C14	IEC 320-C14
Input Type	Cord	Cord
No Load Power Consumption	137 mW	85 - 137 mW
No Load Power Consumption	-	115 - 150 mW
Operating Temperature [Max] [custom]	158 °F	158 °F
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	90 W	90 W
Region Utilized	International	International
Size / Dimension [x]	5.57 in	5.57 in
Size / Dimension [x]	141.5 mm	141.5 mm
Size / Dimension [y]	62.5 mm	62.5 mm
Size / Dimension [y]	2.46 "	2.46 "
Size / Dimension [z]	33 mm	33 mm
Size / Dimension [z]	1.3 "	1.3 "
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	48 V	12 - 54 V

AA90 Series

AC/DC DESKTOP ADAPTER 12V 90W

Part	Polarization	Region Utilized	Standard Number	Input Type	Input Connector	Output Connector [diameter]	Output Connector [x]	Output Connector	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Form	Power (Watts)	Current - Output (Max) [Max]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Voltage - Output	Efficiency	Cord Length	Cord Length	Approval Agency	No Load Power Consumption	No Load Power Consumption [Max]
Phihong USA AA90U-120B-R	Positive Center	International	62368-1	Cord	IEC 320-C14	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	90 VAC	264 VAC	33 mm	62.5 mm	1.3 "	5.57 in	2.46 "	141.5 mm	ITE (Commercial)	Desktop (Class I)	90 W	7.5 A	-10 °C	158 °F	12 V	Level VI	47 "	1.2 m	CE, cUL, cULus, UKCA	85 mW
Phihong USA AA90U-540B-R	Positive Center	International	62368-1	Cord	IEC 320-C14	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	90 VAC	264 VAC	33 mm	62.5 mm	1.3 "	5.57 in	2.46 "	141.5 mm	ITE (Commercial)	Desktop (Class I)	90 W	1.67 A	-10 °C	158 °F	54 V	Level VI	59 in	1.5 m	CE, cUL, cULus, UKCA		150 mW
Phihong USA AA90U-190B-R	Positive Center	International	62368-1	Cord	IEC 320-C14	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	90 VAC	264 VAC	33 mm	62.5 mm	1.3 "	5.57 in	2.46 "	141.5 mm	ITE (Commercial)	Desktop (Class I)	90 W		-10 °C	158 °F	19 V	Level VI	47 "	1.2 m	CE, cUL, cULus, UKCA		115 mW
Phihong USA AA90U-240B-R	Positive Center	International	62368-1	Cord	IEC 320-C14	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	90 VAC	264 VAC	33 mm	62.5 mm	1.3 "	5.57 in	2.46 "	141.5 mm	ITE (Commercial)	Desktop (Class I)	90 W	3.75 A	-10 °C	158 °F	24 V	Level VI	59 in	1.5 m	CE, cUL, cULus, UKCA	124 mW
Phihong USA AA90U-480B-R	Positive Center	International	62368-1	Cord	IEC 320-C14	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	90 VAC	264 VAC	33 mm	62.5 mm	1.3 "	5.57 in	2.46 "	141.5 mm	ITE (Commercial)	Desktop (Class I)	90 W	1.875 A	-10 °C	158 °F	48 V	Level VI	59 in	1.5 m	CE, cUL, cULus, UKCA	137 mW
