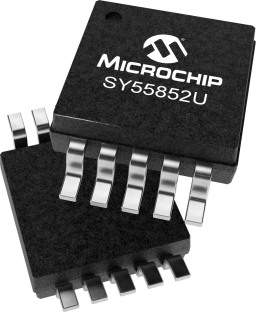

SY55852UKG-TR

Active

Microchip Technology

2.5GBPS D-FLIP FLOP 10 MSOP 3X3X1.0MM T/R ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSY55852U Data Sheet Datasheet

SY55852UKG-TR

Active

Microchip Technology

2.5GBPS D-FLIP FLOP 10 MSOP 3X3X1.0MM T/R ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsSY55852U Data Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SY55852UKG-TR

Clock Frequency	2.5 GHz
Current - Quiescent (Iq)	36 mA
Function	Reset
Mounting Type	Surface Mount
Number of Bits per Element	1
Number of Elements	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Complementary
Package / Case	10-MSOP, 10-TFSOP
Package / Case [x]	3 mm
Package / Case [x]	0.118 in
Supplier Device Package	10-MSOP
Trigger Type	Positive Edge
Type	D-Type
Voltage - Supply [Max]	5.7 V
Voltage - Supply [Min]	2.3 V

SY55852U Series

2.5GBPS D-FLIP FLOP 10 MSOP 3X3X1.0MM T/R ROHS COMPLIANT: YES

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case	Package / Case [x]	Package / Case [x]	Number of Elements	Type	Current - Quiescent (Iq)	Voltage - Supply [Max]	Voltage - Supply [Min]	Function	Output Type	Trigger Type	Mounting Type	Number of Bits per Element	Clock Frequency
Microchip Technology SY55852UKG-TR	85 °C	-40 °C	10-MSOP	10-MSOP, 10-TFSOP	3 mm	0.118 in	1	D-Type	36 mA	5.7 V	2.3 V	Reset	Complementary	Positive Edge	Surface Mount	1	2.5 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 6.51
Microchip Direct	T/R	1	$ 8.60
		25	$ 7.16
		100	$ 6.51
		1000	$ 6.29
		5000	$ 6.22
Newark	Each (Supplied on Full Reel)	100	$ 6.71

Description

General part information

SY55852U Series

The SY55852U is a flip-flop used to synchronize data to a clock. Its differential output will reproduce and remember the value on its input at the rising edge of the clock. In addition, an asynchronous, level sensitive reset is provided. For a synchonous reset, the SY55851U AnyGate® can be used.SY55852U inputs can be terminated with a single resistor between the true and complement pins of a given input.The SY55852U is a member of Micrel's SuperLite™ family of high-speed CML logic. This family features very small packaging and 2.3V to 5.7V operation.
