Description
General part information
21349200405015

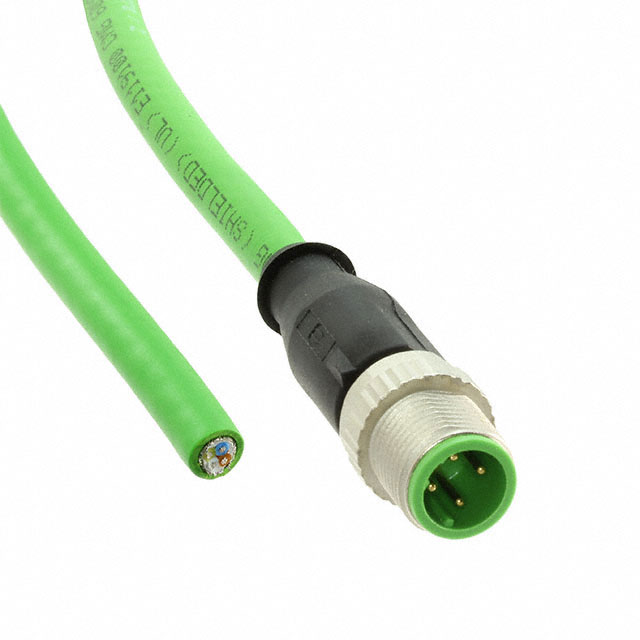

Circular Cable Assembly Shielded 4.92' (1.50m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 21349200405015 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | D |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Green |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Length | 4.92 ft |
| Shielding | Shielded |
| Usage | Cat5, Industrial Environments |
