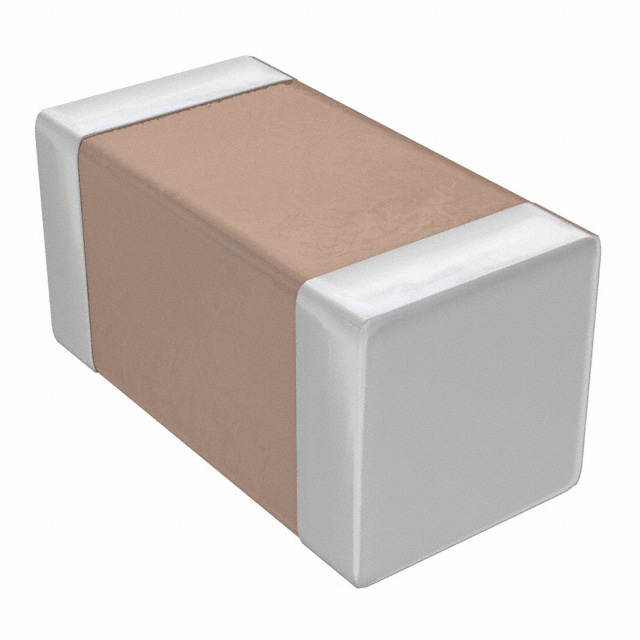

C1005X5R0J474K050BB
ObsoleteTDK Corporation
SMD MULTILAYER CERAMIC CAPACITOR, 0.47 ΜF, 6.3 V, 0402 [1005 METRIC], ± 10%, X5R
C1005X5R0J474K050BB
ObsoleteTDK Corporation
SMD MULTILAYER CERAMIC CAPACITOR, 0.47 ΜF, 6.3 V, 0402 [1005 METRIC], ± 10%, X5R
Description
General part information
C1005X5R0J474K050BB
0.47 µF ±10% 6.3V Ceramic Capacitor X5R 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | C1005X5R0J474K050BB |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.47 µF |
| Features | Low ESL |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.02 in |
| Temperature Coefficient | X5R |
| Thickness (Max) | 0.022 in |
| Tolerance | 10 % |
| Voltage - Rated | 6.3 V |
