SA18SFSF25W-30
ActiveFairview Microwave
FXD ATTN JACK-JACK SMA 1.6
SA18SFSF25W-30
ActiveFairview Microwave
FXD ATTN JACK-JACK SMA 1.6
Description
General part information
SA18SFSF25W-30

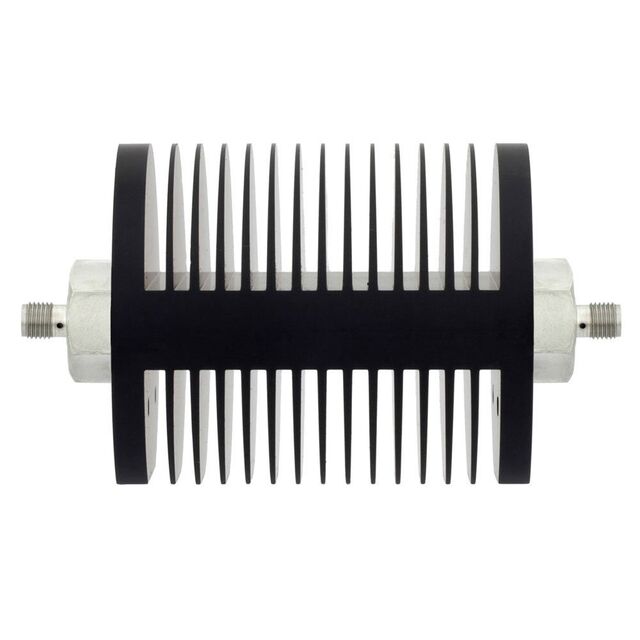

RF Attenuators 30dB 0 Hz ~ 18 GHz 50 Ohms 25W SMA In-Line Module
Technical Specifications
Parameters and characteristics for this part
| Specification | SA18SFSF25W-30 |
|---|---|
| Attenuation Value | 30 dB |
| Frequency Range (Max) | 18 GHz |
| Frequency Range (Min) | 0 Hz |
| Impedance | 50 Ohm |
| Package / Case | SMA In-Line Module |
| Power (Watts) | 25 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
