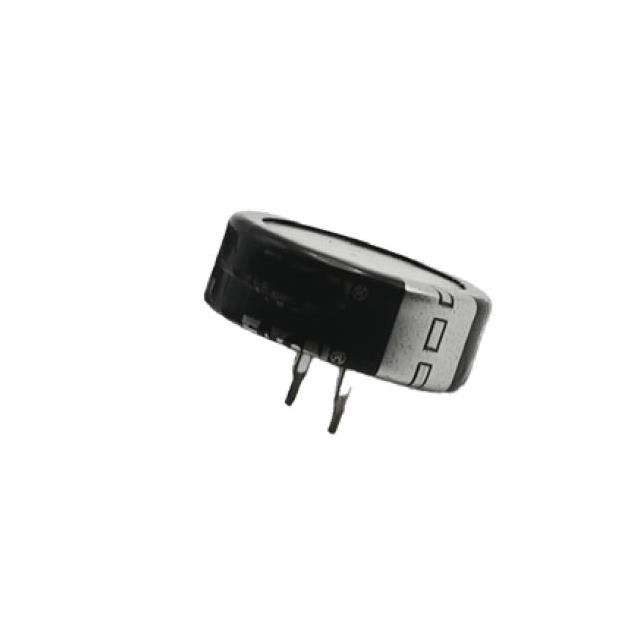

KVR-5R0C105-R
ActiveEaton - Electronics Division
SUPERCAPACITOR COIN 5V 1F CYL
KVR-5R0C105-R
ActiveEaton - Electronics Division
SUPERCAPACITOR COIN 5V 1F CYL
Description
General part information
KVR-5R0C105-R
1 F (EDLC) Supercapacitor 5 V Radial, Can 30Ohm 1000 Hrs @ 70°C
Technical Specifications
Parameters and characteristics for this part
| Specification | KVR-5R0C105-R |
|---|---|
| Capacitance | 1 F |
| ESR (Equivalent Series Resistance) | 30 Ohm |
| Height - Seated (Max) | 0.319 in |
| Lead Spacing | 0.197 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 0.819 in |
| Termination | PC Pins |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 80 % |
| Voltage - Rated | 5 VAC |
