3-1105050-1
ActiveTE Connectivity AMP Connectors

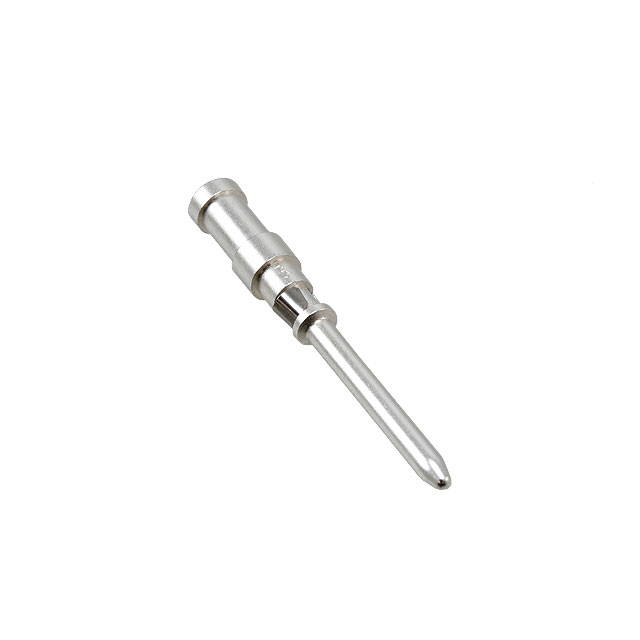

CONTACT H.D CRIMP PIN 17-18.5AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-1105050-1
ActiveTE Connectivity AMP Connectors
CONTACT H.D CRIMP PIN 17-18.5AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-1105050-1 | 1105050 Series |
|---|---|---|
| Contact Finish | Silver | Silver, Gold |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Type | Machined | Machined |
| Wire Gauge | - | 13.5 - 20 AWG |
| Wire Gauge [Max] | 18 AWG | 18 - 26 AWG |
| Wire Gauge [Min] | 17 AWG | 17 - 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.33 | |
| 10 | $ 2.08 | |||
| 25 | $ 2.07 | |||
| 50 | $ 2.04 | |||
| 100 | $ 1.88 | |||
| 250 | $ 1.87 | |||
| 500 | $ 1.70 | |||
| 1000 | $ 1.52 | |||
| 2500 | $ 1.40 | |||
1105050 Series
CONTACT H.D. CRIMP PIN 22-26AWG
| Part | Type | Contact Termination | Pin or Socket | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Wire Gauge |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1105050-1 | Machined | Crimp | Pin | 22 AWG | 26 AWG | Silver | |
TE Connectivity AMP Connectors 5-1105050-2 | Machined | Crimp | Pin | Gold | 13.5 AWG | ||
TE Connectivity AMP Connectors 4-1105050-2 | Machined | Crimp | Pin | Gold | 16 AWG | ||
TE Connectivity AMP Connectors 3-1105050-1 | Machined | Crimp | Pin | 17 AWG | 18 AWG | Silver | |
TE Connectivity AMP Connectors 2-1105050-1 | Machined | Crimp | Pin | Silver | 20 AWG |
Description
General part information
1105050 Series
Contact Crimp Pin 17-18.5 AWG Silver
