SM3670
ObsoleteFairview Microwave
ADAPT JACK-PLUG MCX 1.35 VSWR
SM3670
ObsoleteFairview Microwave
ADAPT JACK-PLUG MCX 1.35 VSWR
Description
General part information
SM3670

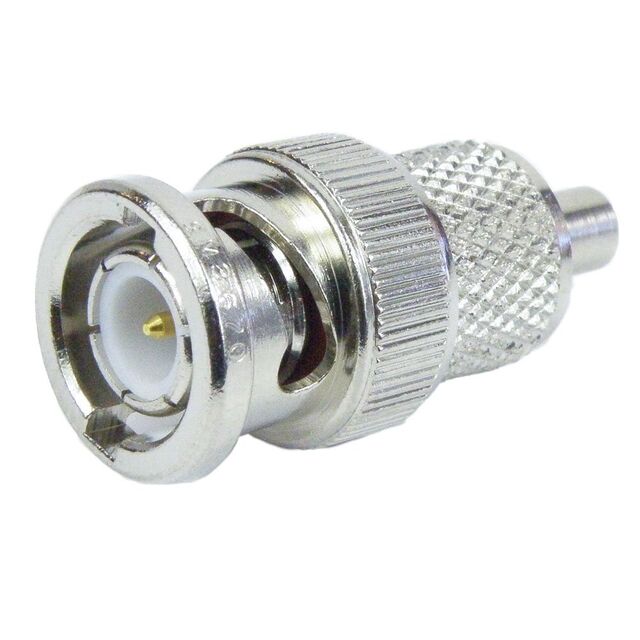

Adapter Coaxial Connector MCX Jack, Female Socket To BNC Plug, Male Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | SM3670 |
|---|---|
| Adapter Series | BNC to MCX |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | MCX Jack, Female Socket |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | BNC Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock, Snap-On |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
