IS66WVQ8M4DALL-200BLI

Active

ISSI, Integrated Silicon Solution Inc

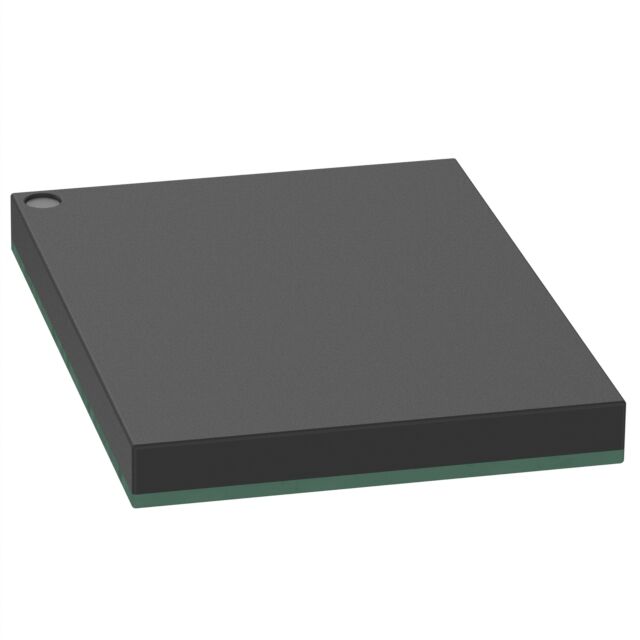

IC PSRAM 32MBIT SPI/QUAD 24TFBGA

Search across all available documentation for this part.

Active

ISSI, Integrated Silicon Solution Inc

IC PSRAM 32MBIT SPI/QUAD 24TFBGA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IS66WVQ8M4DALL-200BLI	IS66WVQ8M4 Series

Clock Frequency	200 MHz	133 - 200 MHz
Memory Format	PSRAM	PSRAM
Memory Interface	SPI - Quad I/O	SPI - Quad I/O
Memory Organization	8M x 4	8M x 4
Memory Size	32 Gbit	32 Gbit
Memory Type	Volatile	Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	24-TBGA	24-TBGA
Supplier Device Package	24-TFBGA (6x8)	24-TFBGA (6x8)
Technology	PSRAM (Pseudo SRAM)	PSRAM (Pseudo SRAM)
Voltage - Supply [Max]	1.95 V	1.95 - 3.6 V
Voltage - Supply [Min]	1.7 V	1.7 - 2.7 V
Write Cycle Time - Word, Page [custom]	45 ns	45 ns
Write Cycle Time - Word, Page [custom]	45 ns	45 ns

IC PSRAM 32MBIT SPI/QUAD 24TFBGA

Part	Memory Format	Memory Size	Clock Frequency	Mounting Type	Memory Type	Operating Temperature [Max]	Operating Temperature [Min]	Memory Interface	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Technology	Memory Organization
ISSI, Integrated Silicon Solution Inc IS66WVQ8M4DALL-200BLI	PSRAM	32 Gbit	200 MHz	Surface Mount	Volatile	85 °C	-40 °C	SPI - Quad I/O	45 ns	45 ns	24-TFBGA (6x8)	1.95 V	1.7 V	24-TBGA	PSRAM (Pseudo SRAM)	8M x 4
ISSI, Integrated Silicon Solution Inc IS66WVQ8M4DBLL-133BLI	PSRAM	32 Gbit	133 MHz	Surface Mount	Volatile	85 °C	-40 °C	SPI - Quad I/O	45 ns	45 ns	24-TFBGA (6x8)	3.6 V	2.7 V	24-TBGA	PSRAM (Pseudo SRAM)	8M x 4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PSRAM (Pseudo SRAM) Memory IC 32Mbit SPI - Quad I/O 200 MHz 24-TFBGA (6x8)

Technical documentation and resources

No documents available
