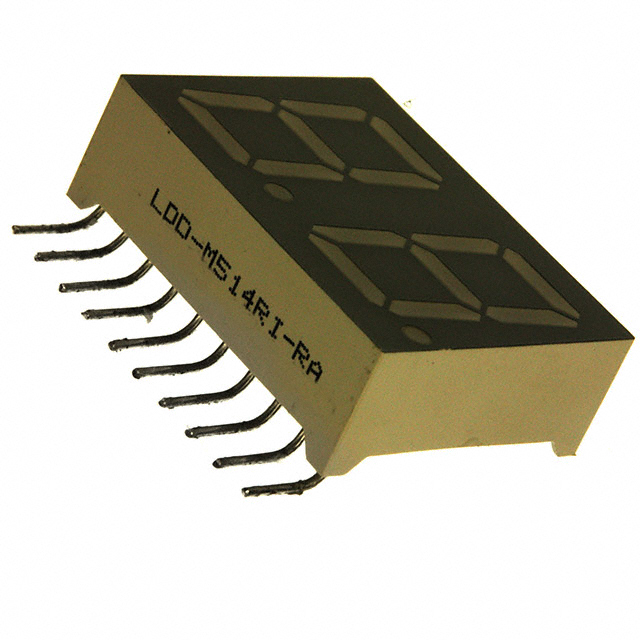

LDD-M514RI-RA

Active

Lumex Opto/Components Inc.

DISP 7SEG 0.56" DBL RED 10SIP RA

Deep-Dive with AI

Search across all available documentation for this part.

LDD-M514RI-RA

Active

Lumex Opto/Components Inc.

DISP 7SEG 0.56" DBL RED 10SIP RA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDD-M514RI-RA

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	3.9 mcd
Number of Characters	2
Package / Case	10-SIP Right Angle
Power Dissipation (Max) [Max]	105 mW
Size / Dimension [x]	0.315 ", 8 mm
Size / Dimension [y]	25 mm, 0.984 in
Size / Dimension [z]	19 mm, 0.748 "
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	635 nm

LDD-M514 Series

DISP 7SEG 0.56" DBL RED 10SIP RA

Part	Current - Test	Color	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Characters	Common Pin	Power Dissipation (Max) [Max]	Millicandela Rating	Display Type
Lumex Opto/Components Inc. LDD-M514RI-RA	10 mA	Red	635 nm	2 V	0.56 in	14.22 mm	10-SIP Right Angle	0.748 ", 19 mm	0.984 in, 25 mm	0.315 ", 8 mm	2	Common Anode	105 mW	3.9 mcd	7-Segment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.10
		20	$ 2.90
		100	$ 2.37
		500	$ 2.00
		1000	$ 1.84
		2000	$ 1.76
		5000	$ 1.73

Description

General part information

LDD-M514 Series

Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Anode 2V 10mA 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm) 10-SIP Right Angle
