ATS-01H-51-C3-R0

Active

Advanced Thermal Solutions Inc.

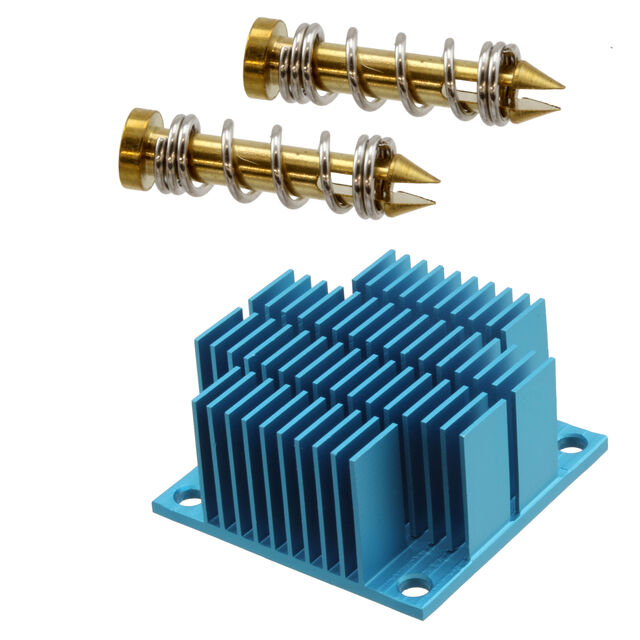

HEATSINK 30X30X20MM L-TAB T412

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-01H-51-C3-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 30X30X20MM L-TAB T412

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATS-01H-51-C3-R0	ATS-01H Series

Attachment Method	Push Pin	Push Pin
Fin Height	-	0.23 - 1.378 in
Fin Height	-	5.84 - 35 mm
Fin Height [z]	0.79 in	0.394 - 1.181 in
Fin Height [z]	20 mm	10 - 30 mm
Length	-	25 - 70 mm
Length	-	0.984 - 2.756 "
Length [x]	30 mm	30 - 60 mm
Length [x]	1.181 in	1.181 - 2.362 in
Material	Aluminum	Aluminum
Material Finish	Blue Anodized	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU	ASIC, BGA, LGA, CPU
Shape	Square, Fins	Square, Fins, Rectangular, Fins
Thermal Resistance @ Forced Air Flow	100 LFM, 14.22 °C/W	2.17 - 100 °C/W
Type	Top Mount	Top Mount
Width	30 mm	25 - 57.6 mm
Width	1.181 in	1.181 - 2.267 in
Width	-	0.984 - 2.362 in
Width	-	40 - 60 mm
Width	-	50 - 70 mm
Width	-	1.45 - 2.756 in

ATS-01H Series

HEATSINK 30X30X25MM L-TAB T766

...

Part	Attachment Method	Material	Thermal Resistance @ Forced Air Flow	Material Finish	Length [x]	Length [x]	Package Cooled	Width	Width	Fin Height	Fin Height	Shape	Type	Width [x]	Width [x]	Fin Height [z]	Fin Height [z]	Length	Width [y]	Width [y]	Length
Advanced Thermal Solutions Inc. ATS-01H-52-C2-R0	Push Pin	Aluminum	10.79 °C/W	Blue Anodized	30 mm	1.181 in	ASIC, BGA, CPU, LGA	30 mm	1.181 in	0.984 in	25 mm	Fins, Square	Top Mount
Advanced Thermal Solutions Inc. ATS-01H-63-C2-R0	Push Pin	Aluminum	12.32 °C/W	Blue Anodized			ASIC, BGA, CPU, LGA					Fins, Square	Top Mount	1.575 in	40 mm	0.79 in	20 mm
Advanced Thermal Solutions Inc. ATS-01H-83-C3-R0	Push Pin	Aluminum	8.76 °C/W	Blue Anodized	30 mm	1.181 in	ASIC, BGA, CPU, LGA	30 mm	1.181 in			Fins, Square	Top Mount			1.181 in	30 mm
Advanced Thermal Solutions Inc. ATS-01H-117-C3-R0	Push Pin	Aluminum	10.58 °C/W, 100 LFM	Blue Anodized		1.772 "	ASIC, BGA, CPU, LGA	45 mm				Fins, Square	Top Mount	1.772 in		0.394 in	10 mm	45 mm
Advanced Thermal Solutions Inc. ATS-01H-71-C1-R0	Push Pin	Aluminum	6.67 °C/W	Blue Anodized		1.772 "	ASIC, BGA, CPU, LGA	45 mm				Fins, Square	Top Mount	1.772 in		1.181 in	30 mm	45 mm
Advanced Thermal Solutions Inc. ATS-01H-122-C2-R0	Push Pin	Aluminum	5.87 °C/W	Blue Anodized	50 mm	1.969 in	ASIC, BGA, CPU, LGA			0.59 "	15 mm	Fins, Square	Top Mount						50 mm	1.969 in
Advanced Thermal Solutions Inc. ATS-01H-177-C2-R0	Push Pin	Aluminum	6.21 °C/W, 100 LFM	Blue Anodized	35 mm	1.378 in	ASIC, BGA, CPU, LGA	35 mm				Fins, Square	Top Mount	1.378 in		0.79 in	20 mm
Advanced Thermal Solutions Inc. ATS-01H-134-C2-R0	Push Pin	Aluminum	4.44 °C/W, 100 LFM	Blue Anodized			ASIC, BGA, CPU, LGA			0.59 "	15 mm	Fins, Square	Top Mount					70 mm	70 mm	2.756 in	2.756 "
Advanced Thermal Solutions Inc. ATS-01H-99-C1-R0	Push Pin	Aluminum	11.49 °C/W	Blue Anodized		1.772 "	ASIC, BGA, CPU, LGA	45 mm				Fins, Square	Top Mount	1.772 in		0.79 in	20 mm	45 mm
Advanced Thermal Solutions Inc. ATS-01H-197-C1-R0	Push Pin	Aluminum	10.86 °C/W, 100 LFM	Blue Anodized		1.772 "	ASIC, BGA, CPU, LGA	45 mm				Fins, Square	Top Mount	1.772 in		0.394 in	10 mm	45 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 4.78

Description

General part information

ATS-01H Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
