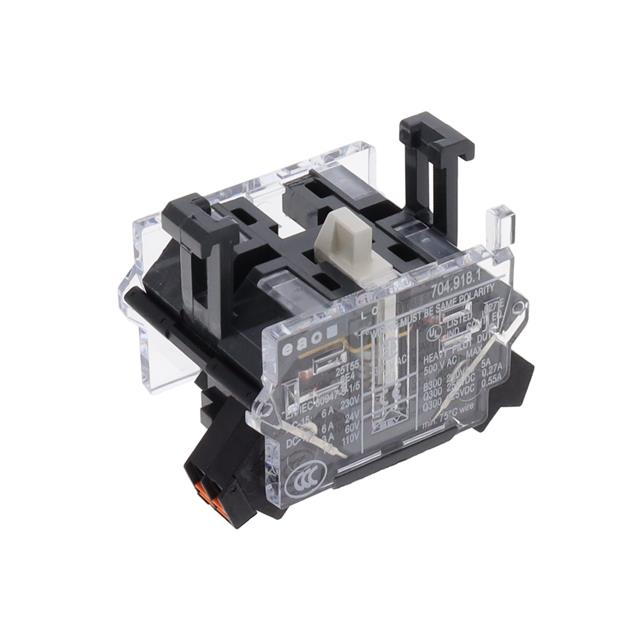

704.918.1
ActiveEAO
CONTACT BLOCK SPST-NO 6A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
704.918.1
ActiveEAO
CONTACT BLOCK SPST-NO 6A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 704.918.1 | 704.918 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 04, EAO | 04, EAO |
| Circuit | SPST-NO | DPST-NO/NC, DPST-NO, SPST-NC, SPST-NO, DPST-NC |
| Contact Rating @ Voltage | 6 A, 250 VAC | 6 - 500 A |
| Requires | Switch Body | Switch Body |
| Termination Style | Spring Terminal | Spring Terminal |
704.918 Series
MICROSWITCH, SNAP ACTION, SPST-NO, SPST-NC, SPRING CLAMP, 6 A
| Part | (Select First, Then Apply Filters) Compatible Series | Contact Rating @ Voltage | Termination Style | Requires | Circuit |
|---|---|---|---|---|---|
EAO 704.918.5 | 04, EAO | 6 A, 250 VAC | Spring Terminal | Switch Body | DPST-NO/NC |
EAO 704.918.3 | 04, EAO | 6 A, 250 VAC | Spring Terminal | Switch Body | DPST-NO |
EAO 704.918.2 | 04, EAO | 6 A, 250 VAC | Spring Terminal | Switch Body | SPST-NC |
EAO 704.918.1 | 04, EAO | 6 A, 250 VAC | Spring Terminal | Switch Body | SPST-NO |
EAO 704.918.4 | 04, EAO | 6 A, 250 VAC | Spring Terminal | Switch Body | DPST-NC |
EAO 704.918.4FS | 04, EAO | 10 A, 500 VAC | Spring Terminal | Switch Body | DPST-NC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.47 | |
| 10 | $ 19.50 | |||
| 100 | $ 16.98 | |||
Description
General part information
704.918 Series
Configurable Contact Block SPST-NO 6A @ 250VAC
