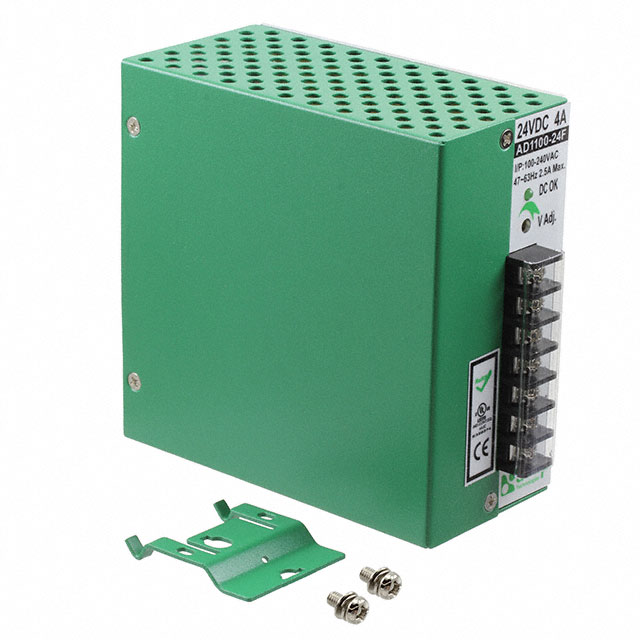

AD1100-24F
ActiveATOP Technologies
AC/DC DIN RAIL SUPPLY 24V 100W
Deep-Dive with AI
Search across all available documentation for this part.
AD1100-24F
ActiveATOP Technologies
AC/DC DIN RAIL SUPPLY 24V 100W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AD1100-24F |
|---|---|
| AC Voltage - Input [Max] | 240 VAC |
| AC Voltage - Input [Min] | 100 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | CE, CB, cULus |
| Current - Output (Max) [Max] | 4 A |
| Efficiency | 81 % |
| Features | Adjustable Output |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 121 mm |
| Size / Dimension [x] | 4.76 " |
| Size / Dimension [y] | 56 mm |
| Size / Dimension [y] | 2.2 in |
| Size / Dimension [z] | 4.33 in |
| Size / Dimension [z] | 110 mm |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 55.00 | |
Description
General part information
AD1100 Series
AC/DC DIN RAIL SUPPLY 24V 100W
