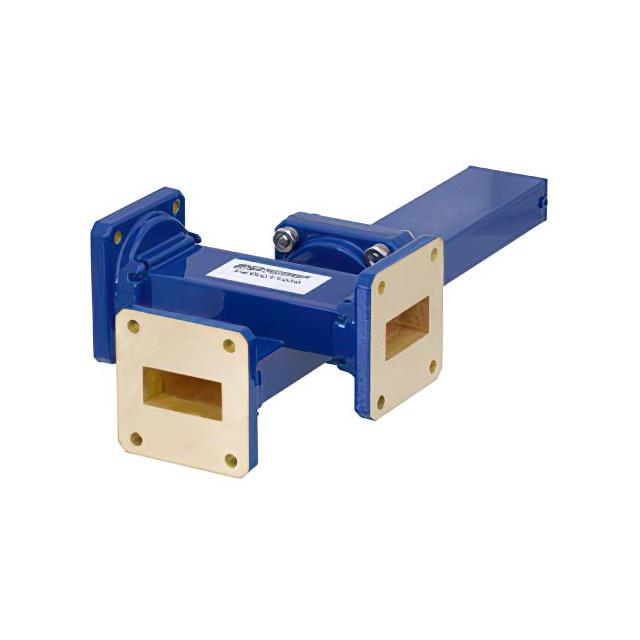

PEWCT1030
ActivePasternack
WR-112 WAVEGUIDE 40 DB CROSSGUID
PEWCT1030
ActivePasternack
WR-112 WAVEGUIDE 40 DB CROSSGUID
Description
General part information
PEWCT1030
RF Directional Coupler Radar 7.05GHz ~ 10GHz 40dB 5W Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PEWCT1030 |
|---|---|
| Applications | Radar |
| Coupler Type | Standard |
| Coupling Factor | 40 dB |
| Frequency (Max) | 10 GHz |
| Frequency (Min) | 7.05 GHz |
| Insertion Loss | 0.1 dB |
| Isolation | 20 dB |
| Package / Case | Module |
| Power - Max | 5 VA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
