1552300288

Obsolete

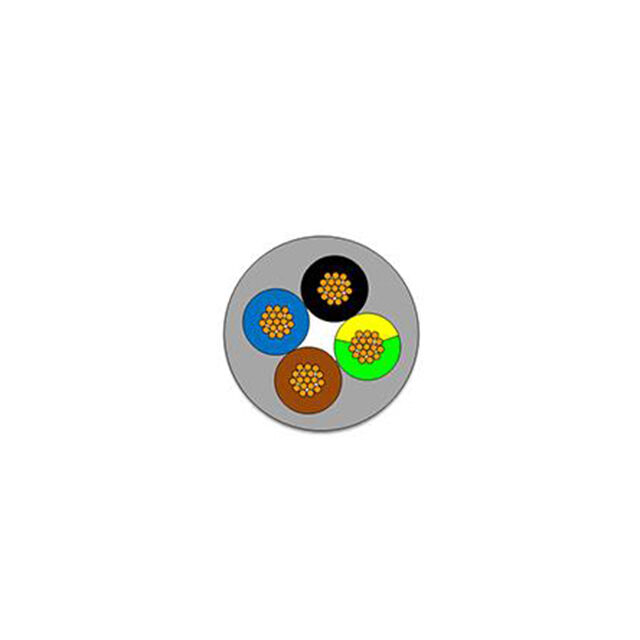

FLAMAR CONTROL CABLE, PUR JACKET, UNSHIELDED, 4 CIRCUITS, 2.50MM² WITH GREEN-YELLOW GROUND / 14 AWG WITH GREEN-YELLOW GROUND, 10.10MM (.398") DIAMETER, 1000.0M (3280.83') LENGTH, GRAY

Find alt

Alpha

1552300288

Obsolete

Molex

FLAMAR CONTROL CABLE, PUR JACKET, UNSHIELDED, 4 CIRCUITS, 2.50MM² WITH GREEN-YELLOW GROUND / 14 AWG WITH GREEN-YELLOW GROUND, 10.10MM (.398") DIAMETER, 1000.0M (3280.83') LENGTH, GRAY

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

155230 Series

Flamar Control Cable, PUR Jacket, Unshielded, 4 Circuits, 0.50mm² with Green-Yellow Ground / 21 AWG with Green-Yellow Ground, 5.90mm (.232") Diameter, 300.0m (984.25') Length, Gray

Technical Specifications

Parameters and characteristics for this part

Specification	1552300288

Cable Type	Conductor, Multi
Conductor Insulation	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare
Conductor Strand Count	133
Conductor Strand Diameter	0.0059 in
Jacket (Insulation) Diameter	0.398 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket (Insulation) Thickness	0.0197 in
Jacket Color	Gray
Length	3281 ft
Number of Conductors	4
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Ratings	21223, Style, UL
Usage	Industrial, Signal, Control
Voltage	1000 V
Wire Gauge	14 AWG

155230 Series

Flamar Control Cable, PUR Jacket, Unshielded, 4 Circuits, 0.50mm² with Green-Yellow Ground / 21 AWG with Green-Yellow Ground, 5.90mm (.232") Diameter, 300.0m (984.25') Length, Gray

...

Part	Voltage	Jacket (Insulation) Material	Number of Conductors	Cable Type	Ratings	Operating Temperature (Min)	Operating Temperature (Max)	Jacket Color	Usage	Wire Gauge	Jacket (Insulation) Thickness	Conductor Material	Conductor Insulation	Jacket (Insulation) Diameter	Conductor Strand Diameter	Conductor Strand Count	Length	Conductor Strand
Molex 1552100316	300 V	Poly-Vinyl Chloride (PVC)	17	Conductor Multi	2464 Style UL	5 °C	80 °C	Gray	Control Industrial Signal	14 AWG	0.0197 in	Bare Copper	Thermoplastic Elastomer (TPE)	0.728 in	0.0059 in	133	328.1 ft
Molex 1552100270	300 V	Poly-Vinyl Chloride (PVC)	25	Conductor Multi	2464 Style UL	5 °C	80 °C	Gray	Control Industrial Signal	16 AWG	0.0177 in	Bare Copper	Thermoplastic Elastomer (TPE)	0.697 in	0.0059 in	81	1640.4 ft
Molex 1552100072	300 V	Poly-Vinyl Chloride (PVC)	4	Conductor Multi	2464 Style UL	5 °C	80 °C	Yellow	Control Industrial Signal	22 AWG	0.0098 in	Bare Copper	Thermoplastic Elastomer (TPE)	0.201 in	0.0039 in	42	4921 ft
Molex 1552100294	300 V	Poly-Vinyl Chloride (PVC)	5	Conductor Multi	2464 Style UL	5 °C	80 °C	Gray	Control Industrial Signal	14 AWG	0.0197 in	Bare Copper	Thermoplastic Elastomer (TPE)	0.445 in	0.0059 in	133	3281 ft
Molex 1552100115	300 V	Poly-Vinyl Chloride (PVC)	4	Conductor Multi	2464 Style UL	5 °C	80 °C	Black	Control Industrial Signal	21 AWG	0.0114 in	Bare Copper	Thermoplastic Elastomer (TPE)	0.232 in	0.0059 in	28	984.3 ft
Molex 1552100262	300 V	Poly-Vinyl Chloride (PVC)	17	Conductor Multi	2464 Style UL	5 °C	80 °C	Gray	Control Industrial Signal	16 AWG	0.0177 in	Bare Copper	Thermoplastic Elastomer (TPE)	0.579 in	0.0059 in	81	328.1 ft
Molex 1552100113	300 V	Poly-Vinyl Chloride (PVC)	3	Conductor Multi	2464 Style UL	5 °C	80 °C	Orange	Control Industrial Signal	21 AWG	0.0114 in	Bare Copper	Thermoplastic Elastomer (TPE)	0.22 in	0.0059 in	28	1640.4 ft
Molex 1552100305	300 V	Poly-Vinyl Chloride (PVC)	11	Conductor Multi	2464 Style UL	5 °C	80 °C	Gray	Control Industrial Signal	14 AWG	0.0197 in	Bare Copper	Thermoplastic Elastomer (TPE)	0.618 in	0.0059 in	133	820.2 ft
Molex 1552109013	300 V	Poly-Vinyl Chloride (PVC)	11	Conductor Multi	2464 Style UL	5 °C	80 °C	Black	Control Industrial Signal	19 AWG 22 AWG		Bare Copper	Thermoplastic Elastomer (TPE)	0.335 in			656.2 ft	42/0.0039" 42/0.0059"
Molex 1552100197	300 V	Poly-Vinyl Chloride (PVC)	12	Conductor Multi	2464 Style UL	5 °C	80 °C	Gray	Control Industrial Signal	18 AWG	0.015 in	Bare Copper	Thermoplastic Elastomer (TPE)	0.453 in	0.0059 in	52	1640.4 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

1552300288 | Datasheet
