7207-121W203

Active

STORM INTERFACE

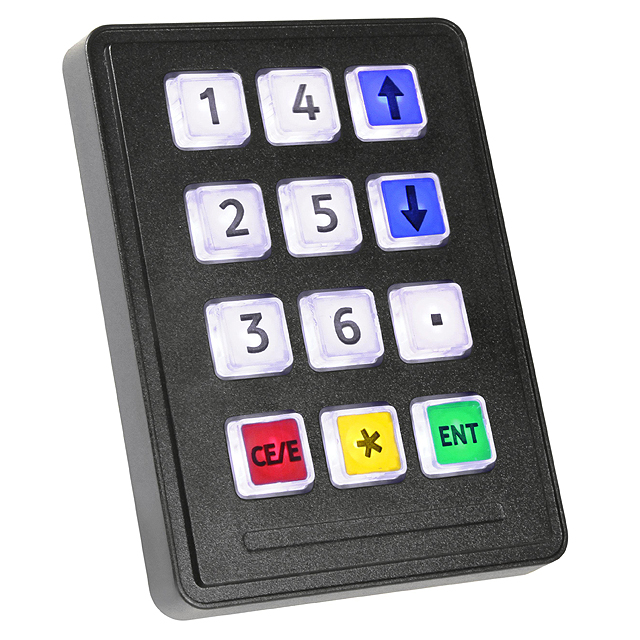

KEYPAD, 3 X 4, MATRIX, POLYMER, 50 MA, 24 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

7207-121W203

Active

STORM INTERFACE

KEYPAD, 3 X 4, MATRIX, POLYMER, 50 MA, 24 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7207-121W203

Approval Agency	CE
Contact Rating @ Voltage	0.05 A, 24 VDC
Illumination	Illuminated - White
Illumination Voltage (Nominal)	5 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Key Color	Multiple
Key Type	Transparent Key Cap
Legend	Customizable (Included)
Legend Color	Black
Legend Type	Interchangeable
Matrix (Columns x Rows) [custom]	4
Matrix (Columns x Rows) [custom]	3
Mounting Type	Panel Mount, Front or Rear
Number of Keys	12
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Operational Life	2000000 Cycles
Output Type	1.81 mOhm
Switch Type	Conductive Rubber
Termination Style	Pin Header

7207 Series

Part	Key Color	Legend Color	Contact Rating @ Voltage	Mounting Type	Output Type	Approval Agency	Switch Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Legend	Illumination	Operational Life	Legend Type	Number of Keys	Ingress Protection	Key Type	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Illumination Voltage (Nominal)
STORM INTERFACE 7207-0410203	Multiple	Black	0.05 A 24 VDC	Panel Mount Front or Rear	1.81 mOhm	CE	Conductive Rubber	-20 C	60 °C	Pin Header	Customizable (Included)	Non-Illuminated	2000000 Cycles	Interchangeable	4	IP65 - Dust Tight Water Resistant	Transparent Key Cap
STORM INTERFACE 7207-161W203	Multiple	Black	0.05 A 24 VDC	Panel Mount Front or Rear	1.81 mOhm	CE	Conductive Rubber	-20 C	60 °C	Pin Header	Customizable (Included)	Illuminated - White	2000000 Cycles	Interchangeable	16	IP65 - Dust Tight Water Resistant	Transparent Key Cap	4	4	5 VDC
STORM INTERFACE 7207-121W203	Multiple	Black	0.05 A 24 VDC	Panel Mount Front or Rear	1.81 mOhm	CE	Conductive Rubber	-20 C	60 °C	Pin Header	Customizable (Included)	Illuminated - White	2000000 Cycles	Interchangeable	12	IP65 - Dust Tight Water Resistant	Transparent Key Cap	3	4	5 VDC
STORM INTERFACE 7207-1610203	Multiple	Black	0.05 A 24 VDC	Panel Mount Front or Rear	1.81 mOhm	CE	Conductive Rubber	-20 C	60 °C	Pin Header	Customizable (Included)	Non-Illuminated	2000000 Cycles	Interchangeable	16	IP65 - Dust Tight Water Resistant	Transparent Key Cap	4	4
STORM INTERFACE 7207-1210203	Multiple	Black	0.05 A 24 VDC	Panel Mount Front or Rear	1.81 mOhm	CE	Conductive Rubber	-20 C	60 °C	Pin Header	Customizable (Included)	Non-Illuminated	2000000 Cycles	Interchangeable	12	IP65 - Dust Tight Water Resistant	Transparent Key Cap	3	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 71.31
		10	$ 55.99
		25	$ 50.61
		50	$ 46.78
		100	$ 43.13
		250	$ 38.58
Newark	Each	1	$ 53.20

Description

General part information

7207 Series

Keypad Switch 12 Transparent Key Cap Keys Conductive Rubber Contacts Matrix Output Illuminated - White 0.05A @ 24VDC
