1106404-1
ActiveTE Connectivity AMP Connectors

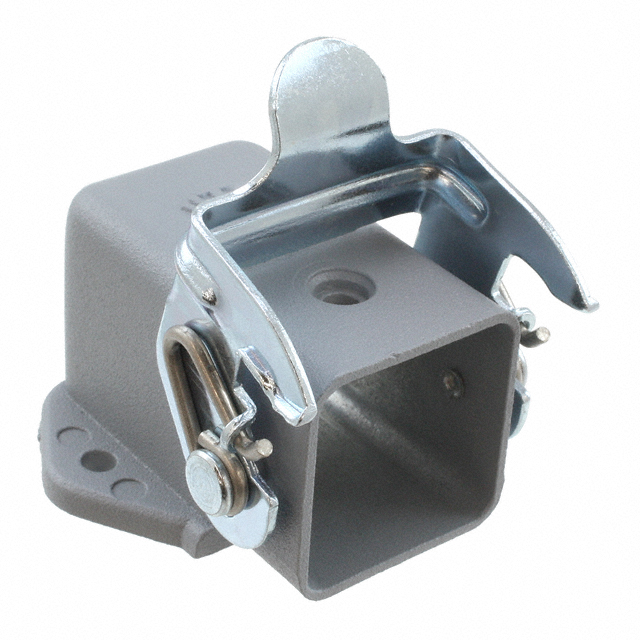

CONN BASE SIDE ENTRY SZ1 M16
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1106404-1
ActiveTE Connectivity AMP Connectors
CONN BASE SIDE ENTRY SZ1 M16
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1106404-1 | 1106404 Series |
|---|---|---|
| Connector Type | Base - Panel Mount 90° | Base - Panel Mount 90° |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Zinc, Die Cast | Zinc, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Size | 1 Gallon | 1 Gallon |
| Size / Dimension [x] | 40 mm | 40 mm |
| Size / Dimension [x] | 1.575 in | 1.575 in |
| Size / Dimension [y] | 1.102 in | 1.102 in |
| Size / Dimension [y] | 28 mm | 28 mm |
| Size / Dimension [z] | 25.5 mm | 25.5 mm |
| Size / Dimension [z] | 1.004 in | 1.004 in |
| Style | Side Entry | Side Entry |
| Thread Size | M16 | M16, M20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 80 | $ 40.90 | |
1106404 Series
CONN BASE SIDE ENTRY SZ1 M16
| Part | Ingress Protection | Size | Housing Color | Style | Thread Size | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Housing Finish | Lock Location | Connector Type | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1106404-1 | IP65 - Dust Tight, Water Resistant | 1 Gallon | Gray | Side Entry | M16 | 40 mm | 25.5 mm | 1.102 in | 1.004 in | 28 mm | 1.575 in | Powder Coated | Locking Clip (1) on Base Bottom | Base - Panel Mount 90° | Zinc, Die Cast |
TE Connectivity AMP Connectors 1106404-3 | IP65 - Dust Tight, Water Resistant | 1 Gallon | Gray | Side Entry | M20 | 40 mm | 25.5 mm | 1.102 in | 1.004 in | 28 mm | 1.575 in | Powder Coated | Locking Clip (1) on Base Bottom | Base - Panel Mount 90° | Zinc, Die Cast |
Description
General part information
1106404 Series
Base - Panel Mount 90° Connector Side Entry M16 1 IP65 - Dust Tight, Water Resistant
Documents
Technical documentation and resources
