BC118-DISKIT001

Active

Sierra Wireless

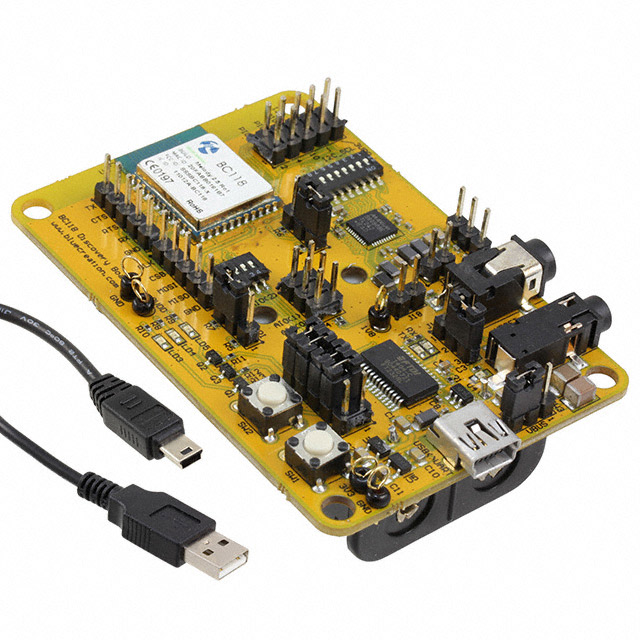

EVAL KIT BLUETOOTH BC118

Search across all available documentation for this part.

Active

Sierra Wireless

EVAL KIT BLUETOOTH BC118

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 188.43

General part information

BC - AirPrime® BC118 Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) 2.4GHz Evaluation Board

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BC118-DISKIT001	BC118 Series

Antenna Type	-	Integrated, Chip, Integrated, Trace
Current - Receiving	-	16 mA
Current - Transmitting	-	16 mA
Data Rate	-	270 kbps
For Use With/Related Products	BC118	BC118
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.4 GHz
Frequency	-	2.48 GHz
Memory Size	-	512 MB
Modulation	-	DQPSK, GFSK, DPSK, QPSK, 8PSK
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module
Power - Output	-	7.5 dBm
Protocol	-	Bluetooth v4.0, Bluetooth v4.1
RF Family/Standard	-	Bluetooth
Sensitivity	-	-92.5 dBm
Serial Interfaces	-	USB, I2C, UART
Supplied Contents	Board(s)	Board(s)
Type	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)
Utilized IC / Part	-	EM3587
Voltage - Supply	-	3.6 - 4.7 V
Voltage - Supply	-	1.8 - 3.3 V

RF TXRX MOD BLUETOOTH CHIP SMD

Part	Utilized IC / Part	Mounting Type	RF Family/Standard	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Package / Case	Data Rate	Antenna Type	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Modulation	Current - Receiving	Power - Output	Current - Transmitting	Frequency	Sensitivity	Serial Interfaces	Supplied Contents	Type	For Use With/Related Products	Frequency [Min]	Frequency [Max]
Sierra Wireless BC118_1103394	EM3587	Surface Mount	Bluetooth	4.7 V	3.3 V	512 MB	Module	270 kbps	Integrated, Chip	85 °C	-40 °C	Bluetooth v4.0	DPSK, DQPSK, GFSK	16 mA	7.5 dBm	16 mA	2.4 GHz	-92.5 dBm	I2C, UART, USB
Sierra Wireless BC118-DISKIT001																	2.4 GHz			Board(s)	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)	BC118
Sierra Wireless BC118_1103396		Surface Mount	Bluetooth	3.6 V	1.8 V		Module	270 kbps	Integrated, Trace	85 °C	-40 °C	Bluetooth v4.1	8PSK, GFSK, QPSK	16 mA	7.5 dBm	16 mA		-92.5 dBm	I2C, UART, USB				2.4 GHz	2.48 GHz
