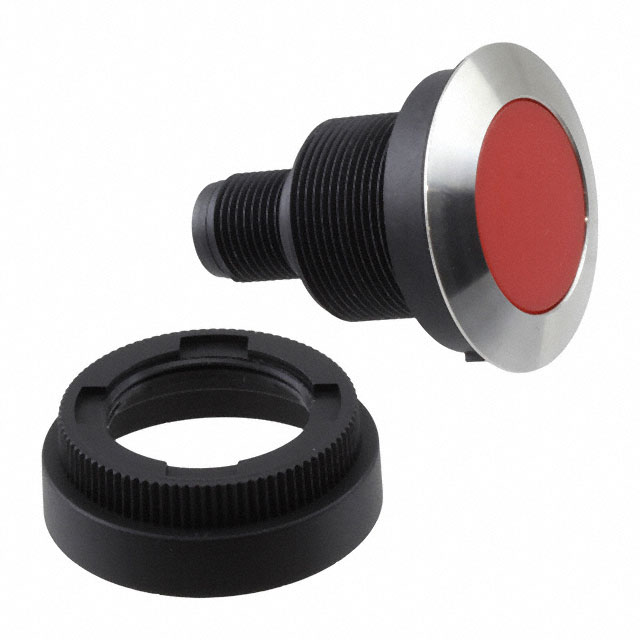

1.11.011.001/0330

Active

RAFI USA

SWITCH PUSH SPST-NO 100MA 35V

Search across all available documentation for this part.

Active

RAFI USA

SWITCH PUSH SPST-NO 100MA 35V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1.11.011.001/0330	1.11.011 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	Red	Red, Green
Current Rating (Amps)	100 mA	100 mA
Electrical Life	500000 Cycles	500000 Cycles
Illumination Type, Color	Red, LED	Red, LED, Green
Illumination Voltage (Nominal)	24 V	24 V
Ingress Protection	IP69K - Dust Tight, High Temp Water Jets, Waterproof	IP69K - Dust Tight, High Temp Water Jets, Waterproof
Mechanical Life	500000 Cycles	500000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	30.3 mm	30.3 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Connector	Connector
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - DC	35 V	35 V

SWITCH PUSH SPST-NO 100MA 35V

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Actuator Marking	Switch Function	Illumination Type, Color	Actuator Type	Color - Actuator/Cap	Illumination Voltage (Nominal)	Type	Ingress Protection	Termination Style	Circuit	Electrical Life	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mounting Type
RAFI USA 1.11.011.001/0330	30.3 mm	35 V	No Marking	Off-Mom	LED, Red	Button, Flush, Round	Red	24 V	Illuminated, Standard	IP69K - Dust Tight, High Temp Water Jets, Waterproof	Connector	SPST-NO	500000 Cycles	500000 Cycles	70 °C	-25 °C	100 mA	Panel Mount, Front
RAFI USA 1.11.011.001/0550	30.3 mm	35 V	No Marking	Off-Mom	Green, LED	Button, Flush, Round	Green	24 V	Illuminated, Standard	IP69K - Dust Tight, High Temp Water Jets, Waterproof	Connector	SPST-NO	500000 Cycles	500000 Cycles	70 °C	-25 °C	100 mA	Panel Mount, Front
