MAL204866471E3
ActiveVishay Dale
CAP ALUMINUM LYTIC 470UF 25V 20% (10 X 16MM) RADIAL 5MM 0.44A 3000H 105°C BULK
MAL204866471E3
ActiveVishay Dale
CAP ALUMINUM LYTIC 470UF 25V 20% (10 X 16MM) RADIAL 5MM 0.44A 3000H 105°C BULK
Description
General part information
MAL204866471E3
470 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL204866471E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 470 µF |
| Height - Seated (Max) | 0.689 in |
| Impedance | 180 mOhm |
| Lead Spacing | 0.197 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |

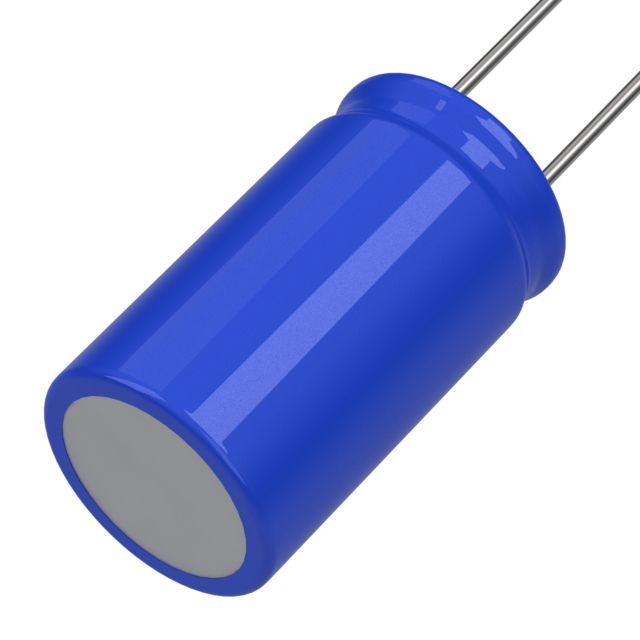

| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 440 mA |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
