DMC2004LPK-7
ActiveDiodes Inc
SMALL SIGNAL FIELD-EFFECT TRANSISTOR, 0.75A I(D), 20V, 2-ELEMENT, N-CHANNEL AND P-CHANNEL, SILICON, METAL-OXIDE SEMICONDUCTOR FET, GREEN, ULTRA SMALL, PLASTIC, DFN1612, 6 PIN
Technical Specifications
Parameters and characteristics for this part
| Specification | DMC2004LPK-7 |
|---|---|
| Configuration | N and P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 750 mA, 600 mA |
| Drain to Source Voltage (Vdss) | 20 V |
| FET Feature | Logic Level Gate |
| Input Capacitance (Ciss) (Max) @ Vds | 150 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |

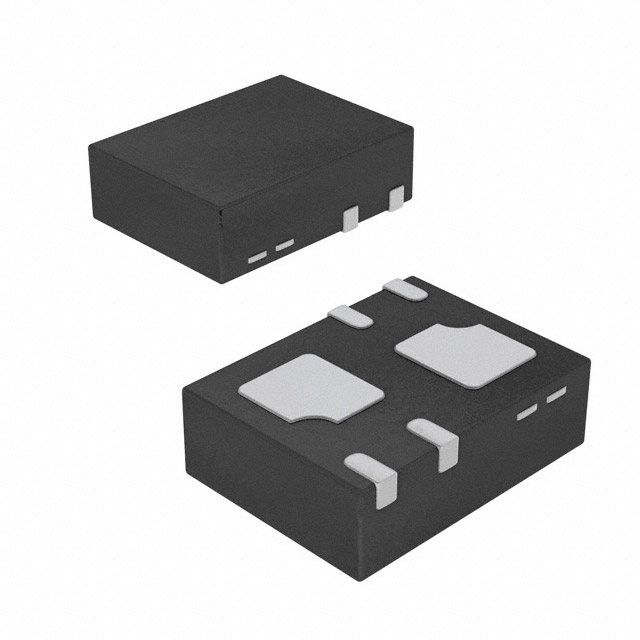

| Package / Case | 6-SMD, No Lead |
| Power - Max [Max] | 500 mW |
| Rds On (Max) @ Id, Vgs [Max] | 550 mOhm |
| Supplier Device Package | DFN1612-6 |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.41 | |
| 10 | $ 0.35 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.41 | ||
| 10 | $ 0.35 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 3000 | $ 0.15 | ||
| 6000 | $ 0.14 | |||
| 9000 | $ 0.13 | |||
| 15000 | $ 0.13 | |||
| 21000 | $ 0.12 | |||
| 30000 | $ 0.12 | |||
Description
General part information
DMC2004LPK Series
Complementary Pair Enhancement Mode MOSFET
