2817958
ActivePhoenix Contact

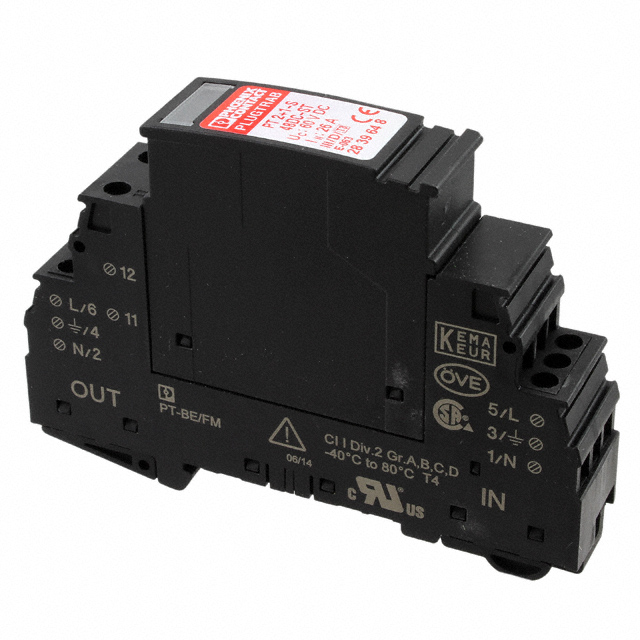

SPD TYPE 3 60VDC MCOV 1 POLE
2817958
ActivePhoenix Contact
SPD TYPE 3 60VDC MCOV 1 POLE
Description
General part information
2817958
SPD TYPE 3 60VDC MCOV 1 POLE
Technical Specifications
Parameters and characteristics for this part
| Specification | 2817958 |
|---|---|
| Approval Agency | EAC |
| Current - Discharge (Nom) | 500 A |
| Current - Short Circuit Rating (SCCR) | 200 A |
| Form | Module, Base |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Type 3 |
| Voltage - Continuous Operating (Max) (MCOV) | 60 VAC |
| Voltage - Protection Level (VP) (2416) | 120 V |
