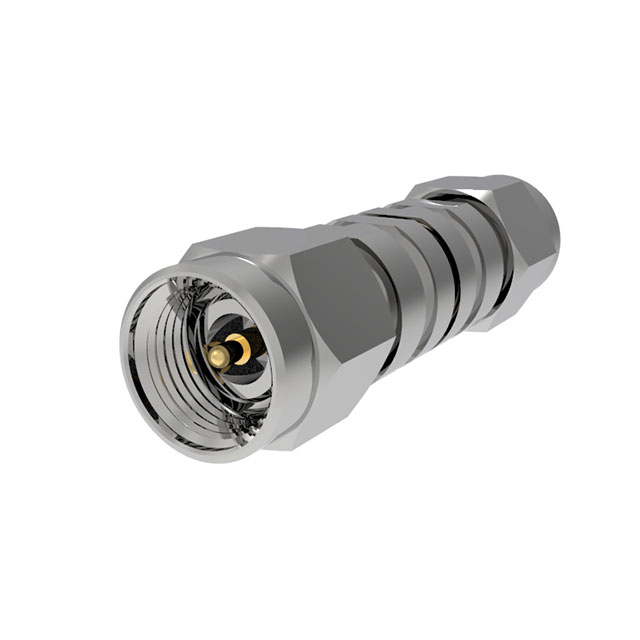

TMA-4FS-5MS-00
ActiveCarlisleIT
MW ADAPTER 2.4(F) TO 3.5(M)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMA-4FS-5MS-00 |
|---|---|
| Adapter Series [Max] | 3.5 mm |
| Adapter Series [Min] | 2.4 mm |
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Conversion Type | Between Series |
| Convert From (Adapter End) | 2.4 mm |
| Frequency - Max [Max] | 26.5 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 56.78 | |
| 10 | $ 52.10 | |||
| 25 | $ 50.10 | |||
| 50 | $ 48.43 | |||
| 100 | $ 45.76 | |||
Description
General part information
TMA-4FS-5MS-00
Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Jack, Female Socket To 3.5mm Plug, Male Pin 50 Ohms
