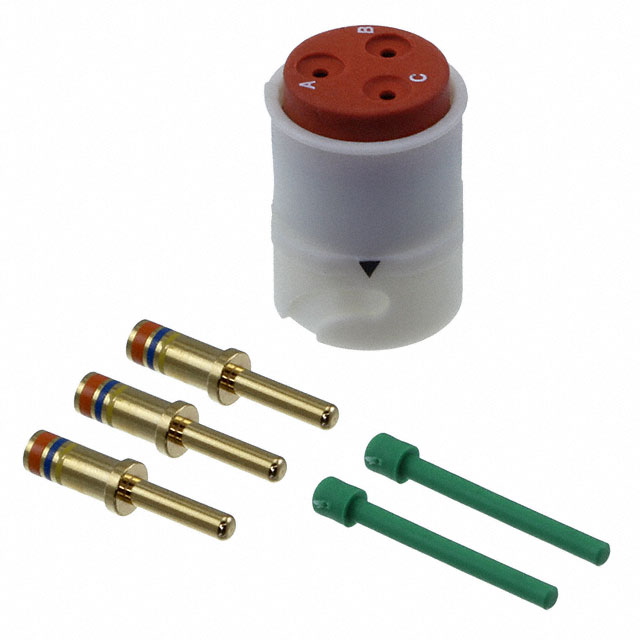

SJS840301

Active

AMPHENOL PCD

CONN RCPT MALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

SJS840301

Active

AMPHENOL PCD

CONN RCPT MALE 3POS GOLD CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SJS840301

Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Ingress Protection	Environment Sealed
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Primary Material	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	8
Termination	Crimp

SJS84 Series

Part	Shell Material	Ingress Protection	Type	Note	Number of Positions	Contact Size	Contact Type	Housing Color	Features	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Material Flammability Rating	Connector Type	Mounting Type	Contact Shape	Shielding	Fastening Type	Termination	Current Rating (Amps)	Primary Material	Contact Finish - Mating	Mounting Feature
AMPHENOL PCD SJS840410	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof	For Female Sockets	Contacts Not Included	4	16	Crimp	White	Coupling Nut Dust Cap	8	155 °C	-65 ░C	A	UL94 V-0	Plug Housing	Free Hanging (In-Line)	Circular	Unshielded	Bayonet Lock
AMPHENOL PCD SJS840301	Polyamide (PA66) Nylon 6/6	Environment Sealed								8	125 °C	-65 ░C			Male Pins Receptacle	Free Hanging (In-Line)			Bayonet Lock	Crimp	13 A	Plastic	Gold
AMPHENOL PCD SJS840400	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof	For Male Pins	Contacts Not Included	4	16	Crimp	White	Dust Cap	8	155 °C	-65 ░C	A	UL94 V-0	Receptacle Housing	Free Hanging (In-Line)	Circular	Unshielded	Bayonet Lock
AMPHENOL PCD SJS840330	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof	For Male Pins	Contacts Not Included		16	Crimp	Black	Dust Cap	8	155 °C	-65 ░C	B	UL94 V-0	Receptacle Housing		Circular	Unshielded	Bayonet Lock					Flange
AMPHENOL PCD SJS840300	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof	For Male Pins	Contacts Not Included		16	Crimp	White	Dust Cap	8	155 °C	-65 ░C	A	UL94 V-0	Receptacle Housing	Free Hanging (In-Line)	Circular	Unshielded	Bayonet Lock
AMPHENOL PCD SJS840350	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof	For Male Pins	Contacts Not Included		16	Crimp	Black	Dust Cap	8	155 °C	-65 ░C	B	UL94 V-0	Receptacle Housing	Free Hanging (In-Line)	Circular	Unshielded	Bayonet Lock
AMPHENOL PCD SJS840310	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof	For Female Sockets	Contacts Not Included		16	Crimp	White	Coupling Nut Dust Cap	8	155 °C	-65 ░C	A	UL94 V-0	Plug Housing	Free Hanging (In-Line)	Circular	Unshielded	Bayonet Lock
AMPHENOL PCD SJS840320	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof	For Male Pins	Contacts Not Included		16	Crimp	White	Dust Cap	8	155 °C	-65 ░C	A	UL94 V-0	Receptacle Housing		Circular	Unshielded	Bayonet Lock					Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.69
		10	$ 15.89

Description

General part information

SJS84 Series

3 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

No documents available
