56.OA02.1242C

Active

Altech Corporation

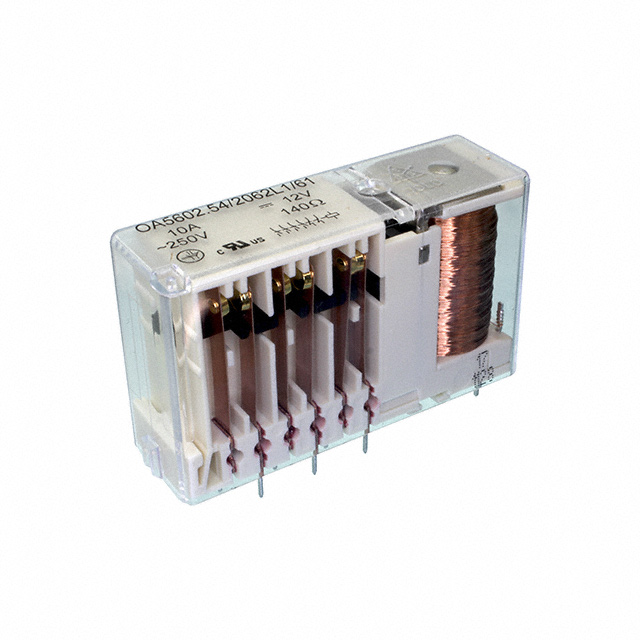

OA560212V 4NO/2NC AGSN02+02UMAU

Search across all available documentation for this part.

Active

Altech Corporation

OA560212V 4NO/2NC AGSN02+02UMAU

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	56.OA02.1242C	56.OA02 Series

	-	-
Coil Current	85.7 mA	85.7 mA
Coil Resistance	-	140 Ohms
Coil Voltage	12 VDC	12 VDC
Contact Form	6PST-4NO/2NC (4 Form A, 2 Form B)	6PST-4NO/2NC (4 Form A, 2 Form B)
Contact Material	Gold (Au), Silver Tin Oxide (AgSnO)	Gold (Au), Silver Tin Oxide (AgSnO), Silver Nickel (AgNi)
Contact Rating (Current)	10 A	10 A
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	8.4 VDC	8.4 VDC
Operate Time	27 ms	27 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	5 ms	5 ms
Switching Voltage [Max]	250 VDC, 400 VAC	250 - 400 VDC
Termination Style	PC Pin	PC Pin

OA5602110V3NO/3NC AGNI10+5UMAU I

Part	Contact Rating (Current)	Termination Style	Switching Voltage [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Coil Current	Must Operate Voltage	Operate Time	Contact Form	Contact Material	Release Time
Altech Corporation 56.OA02.1133S
Altech Corporation 56.OA02.1124N
Altech Corporation 56.OA02.1242N
Altech Corporation 56.OA02.2433C
Altech Corporation 56.OA02.0633C
Altech Corporation 56.OA02.2442C
Altech Corporation 56.OA02.1233S
Altech Corporation 56.OA02.1242C	10 A	PC Pin	250 VDC, 400 VAC	Through Hole	85 °C	-40 °C	12 VDC	85.7 mA	8.4 VDC	27 ms	6PST-4NO/2NC (4 Form A, 2 Form B)	Gold (Au), Silver Tin Oxide (AgSnO)	5 ms
Altech Corporation 56.OA02.1224S
Altech Corporation 56.OA02.0624S

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

OA560212V 4NO/2NC AGSN02+02UMAU

Technical documentation and resources
