820-AG11D-ESL-LF

Obsolete

TE Connectivity AMP Connectors

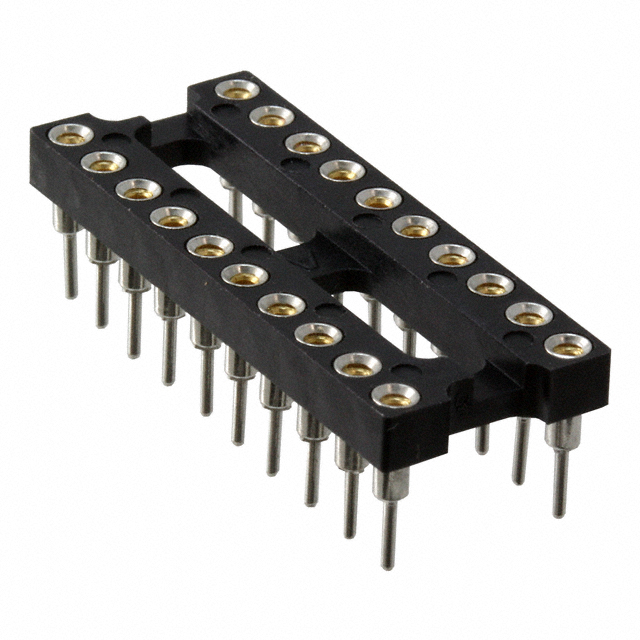

CONN IC DIP SOCKET 20POS GOLD

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN IC DIP SOCKET 20POS GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	820-AG11D-ESL-LF	820 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Material - Mating	Beryllium Copper	Copper Alloy, Beryllium Copper
Contact Material - Post	Copper	Copper
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	-	3 A
Features	Open Frame	Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	20	20
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Solder	Solder
Termination Post Length	3.18 mm	3.18 mm
Termination Post Length	0.125 in	0.125 in
Type	0.3 "	0.3 "
Type	7.62 mm	7.62 mm
Type	DIP	DIP

CONN IC DIP SOCKET 20POS GOLD

Part	Features	Number of Positions or Pins (Grid)	Contact Material - Mating	Pitch - Mating	Pitch - Mating	Termination Post Length	Termination Post Length	Current Rating (Amps)	Termination	Contact Finish - Mating	Type	Type	Type	Contact Resistance	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Mounting Type	Pitch - Post	Pitch - Post	Contact Finish - Post	Contact Material - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors 820-AG10D	Open Frame	20	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	3 A	Solder	Gold	0.3 "	7.62 mm	DIP	10 mOhm	Polyester	105 ░C	-55 °C	UL94 V-0	Through Hole	2.54 mm	0.1 in
TE Connectivity AMP Connectors 820-AG11D-ESL-LF	Open Frame	20	Beryllium Copper	0.1 in	2.54 mm	3.18 mm	0.125 in		Solder	Gold	0.3 "	7.62 mm	DIP	10 mOhm	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	105 ░C	-55 °C	UL94 V-0	Through Hole	2.54 mm	0.1 in	Gold	Copper	Flash	Flash
