1985043
ActivePhoenix Contact

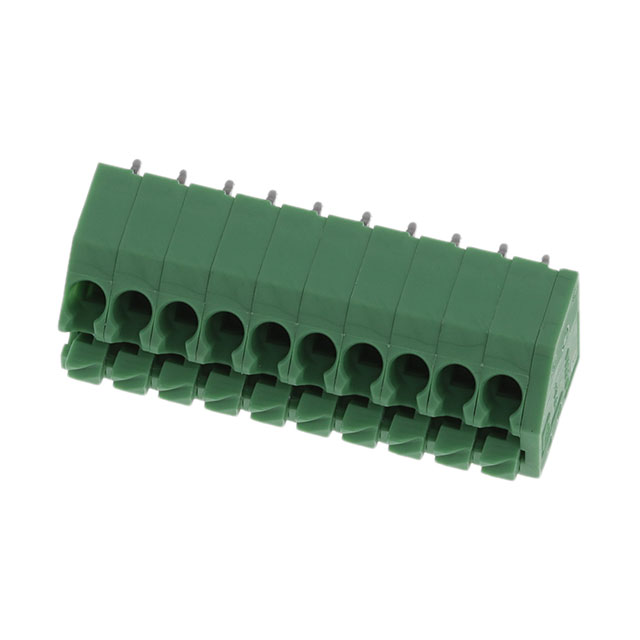

TERM BLOCK 10POS 45DEG 3.5MM PCB
1985043
ActivePhoenix Contact
TERM BLOCK 10POS 45DEG 3.5MM PCB
Description
General part information
1985043
10 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.138" (3.50mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1985043 |
|---|---|
| Color | Green |
| Current | 2 A |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.138 in |
| Positions Per Level | 10 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring, Spring Cage, Tension Clamp |
