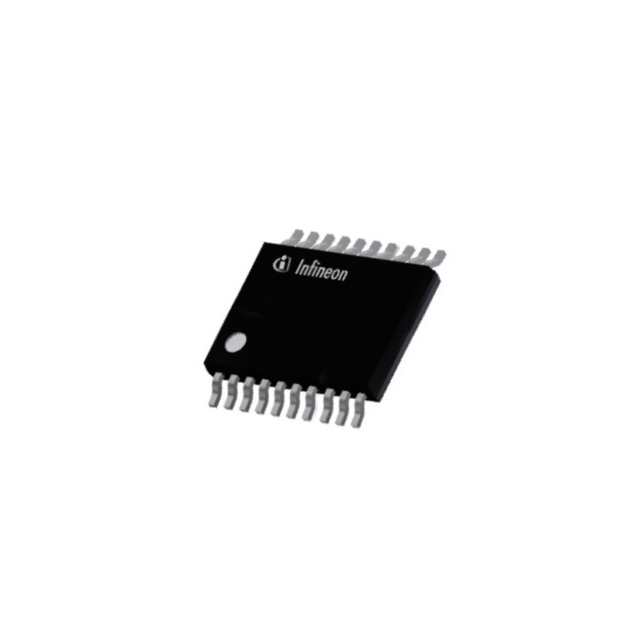

BTS711L1NT

Obsolete

Infineon Technologies

IC PWR SWITCH N-CHAN 1:1 DSO-20

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC PWR SWITCH N-CHAN 1:1 DSO-20

Technical Specifications

Parameters and characteristics for this part

Specification	BTS711L1NT

Current - Output (Max) [Max]	1.7 A
Fault Protection	Current Limiting (Fixed), Over Voltage, Over Temperature, Open Load Detect
Features	Status Flag, Auto Restart
Grade	Automotive
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	4
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	20-SOIC
Package / Case [y]	0.295 in
Package / Case [y]	7.5 mm
Qualification	AEC-Q100
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	165 mOhm
Supplier Device Package	PG-DSO-20-31
Switch Type	General Purpose
Voltage - Load [Max]	34 V
Voltage - Load [Min]	5 V
Voltage - Supply (Vcc/Vdd)	False

Part	Output Configuration	Current - Output (Max) [Max]	Supplier Device Package	Fault Protection	Output Type	Interface	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Switch Type	Input Type	Rds On (Typ)	Ratio - Input:Output [custom]	Qualification	Features	Package / Case	Package / Case [y]	Package / Case [y]	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Supply (Vcc/Vdd)	Grade
Infineon Technologies BTS711L1NT	High Side	1.7 A	PG-DSO-20-31	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	N-Channel	On/Off	4	150 °C	-40 °C	Surface Mount	General Purpose	Non-Inverting	165 mOhm	1:1	AEC-Q100	Auto Restart Status Flag	20-SOIC	0.295 in	7.5 mm	34 V	5 V		Automotive
