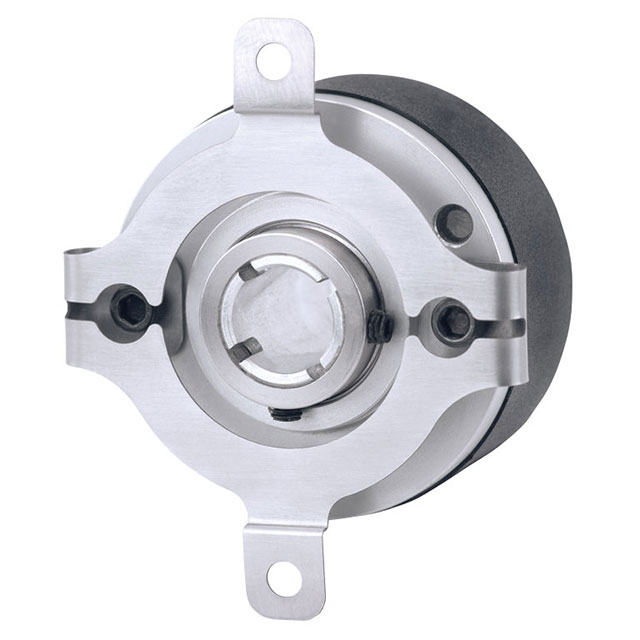

15T-02SA-0200NV1RHV-M00

Active

Encoder Products Company

1.5" DIA INCREMENTAL ENCODER 3/8

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

15T-02SA-0200NV1RHV-M00

Active

Encoder Products Company

1.5" DIA INCREMENTAL ENCODER 3/8

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	15T-02SA-0200NV1RHV-M00

Actuator Type	Open Center
Actuator Type [diameter]	10 mm
Built in Switch	False
Detent	False
Encoder Type	Incremental
Mounting Type	Chassis Mount, Motors
Orientation	User Selectable
Output Type	Quadrature Line Driver with Index (Incremental)
Pulses per Revolution	200
Termination Style	Cable
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	5 V

15T-02SA Series

Part	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Orientation	Encoder Type	Termination Style	Pulses per Revolution	Actuator Type [diameter]	Actuator Type
Encoder Products Company 15T-02SA-2500NV1ROC-M00	Open Collector	5 V	28 V	Chassis Mount Motors	User Selectable	Incremental	Cable	2500	10 mm	Open Center
Encoder Products Company 15T-02SA-10000NV1RHV-M00	Quadrature Line Driver with Index (Incremental)	5 V	28 V	Chassis Mount Motors	User Selectable	Incremental	Cable	10000 per Revolution	10 mm	Open Center
Encoder Products Company 15T-02SA-1024NV1RHV-M00	Quadrature Line Driver with Index (Incremental)	5 V	28 V	Chassis Mount Motors	User Selectable	Incremental	Cable	1024	10 mm	Open Center
Encoder Products Company 15T-02SA-2048NV1RHV-M00	Quadrature Line Driver with Index (Incremental)	5 V	28 V	Chassis Mount Motors	User Selectable	Incremental	Cable	2048	10 mm	Open Center
Encoder Products Company 15T-02SA-0200NV1RHV-M00	Quadrature Line Driver with Index (Incremental)	5 V	28 V	Chassis Mount Motors	User Selectable	Incremental	Cable	200	10 mm	Open Center
Encoder Products Company 15T-02SA-1000NV1ROC-M00	Open Collector	5 V	28 V	Chassis Mount Motors	User Selectable	Incremental	Cable	1000	10 mm	Open Center
Encoder Products Company 15T-02SA-2500NV1RHV-M00	Quadrature Line Driver with Index (Incremental)	5 V	28 V	Chassis Mount Motors	User Selectable	Incremental	Cable	2500	10 mm	Open Center
Encoder Products Company 15T-02SA-0100NV1ROC-M00	Open Collector	5 V	28 V	Chassis Mount Motors	User Selectable	Incremental	Cable	100	10 mm	Open Center
Encoder Products Company 15T-02SA-8192NV1ROC-M00	Open Collector	5 V	28 V	Chassis Mount Motors	User Selectable	Incremental	Cable	8192	10 mm	Open Center
Encoder Products Company 15T-02SA-2048NV1ROC-M00	Open Collector	5 V	28 V	Chassis Mount Motors	User Selectable	Incremental	Cable	2048	10 mm	Open Center

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 285.00

Description

General part information

15T-02SA Series

Rotary Encoder Incremental 200 Quadrature Line Driver with Index (Incremental) User Selectable
