Obsolete
Molex

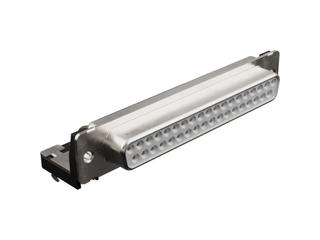

FCT STANDARD-DENSITY D-SUB CONNECTOR, FEMALE, RIGHT-ANGLE, PCB THROUGH HOLE, 11.10MM TAIL LENGTH, GOLD PLATING, 200 MATING CYCLES, PLASTIC BRACKET WITH SNAP-IN GROUNDING BRACKET AND CLINCH NUT, 37 CIRCUITS, WHITE INSULATOR

Find alt
1731090478

1731090478

Obsolete
Molex

FCT STANDARD-DENSITY D-SUB CONNECTOR, FEMALE, RIGHT-ANGLE, PCB THROUGH HOLE, 11.10MM TAIL LENGTH, GOLD PLATING, 200 MATING CYCLES, PLASTIC BRACKET WITH SNAP-IN GROUNDING BRACKET AND CLINCH NUT, 37 CIRCUITS, WHITE INSULATOR

Find alt

Description

General part information

173109 Series

FCT Standard-Density D-Sub Connector, Male, Straight, PCB Through Hole, 10.30mm Tail Length, Gold Plating, 200 Mating Cycles, 6.30mm #4-40 Front Spacer, 6.50mm M3 Rear Spacer, 15 Circuits, White Insulator

Technical Specifications

Parameters and characteristics for this part

Specification1731090478
Connector LayoutDC, C
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact TypeSignal
Current Rating5 A
FeaturesMounting Brackets, Board Lock
FinishTin Plated
Flange FeatureMating Side, Female Screwlock
Ingress ProtectionIP20
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions37 pos
Number of Rows2
Shell MaterialSteel
Shell Size4
TerminationSolder
