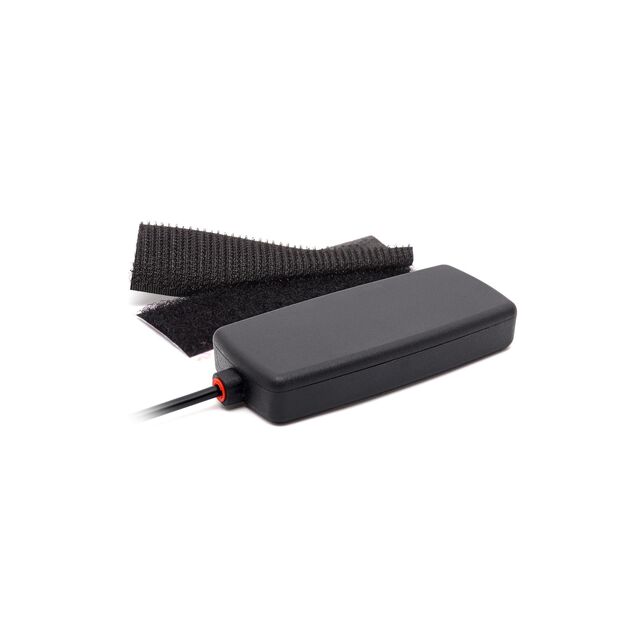

Specification	2J4824VP

Antenna Type	Module
Applications	LTE, 3G, 4G, 2G
Features	Cable, 3m
Frequency (Center/Band)	1.94GHz, 829MHz, 2.6GHz
Frequency (Center/Band) - 1	829 MHz
Frequency (Center/Band) - 2	1.94 GHz
Frequency (Center/Band) - 3	2.6 GHz
Frequency Group	Wide Band
Frequency Range (Band 1) Maximum	960 MHz
Frequency Range (Band 1) Minimum	698 MHz
Frequency Range (Band 2) Maximum	2.17 GHz
Frequency Range (Band 2) Minimum	1.71 GHz
Frequency Range (Band 3) Maximum	2.7 GHz
Frequency Range (Band 3) Minimum	2.5 GHz
Gain	3.4 dBi, 2.1 dBi, 1 dBi
Height (Max)	0.602 in
Ingress Protection	IP67, IP69
Mounting Type	Adhesive
Number of Bands	3
Power - Max	25 W
Return Loss	-13.1dB, -16.7dB, -11.6dB
Return Loss	-11.6 dB, -13.1 dB, -16.7 dB
RF Family/Standard	Cellular
Termination Type	SMA Male
VSWR	1.4, 1.8, 1.9
