638-044-632-241
ActiveEDAC Inc.

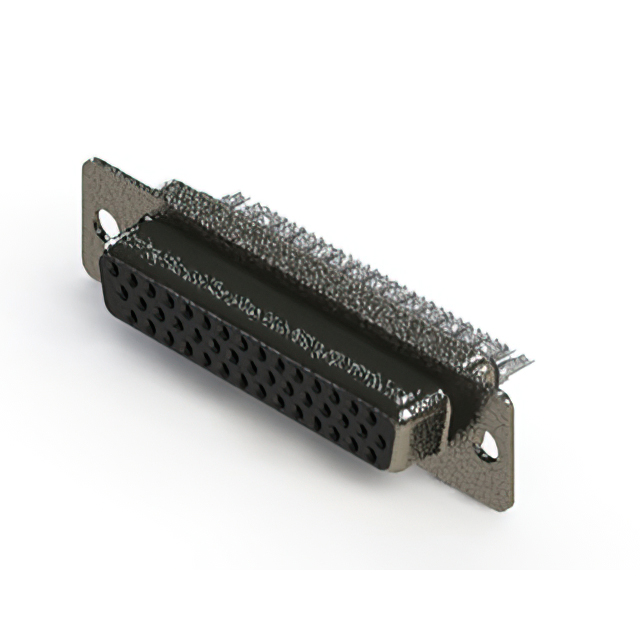

CONN D-SUB HD RCPT 44P SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
638-044-632-241
ActiveEDAC Inc.
CONN D-SUB HD RCPT 44P SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 638-044-632-241 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 44 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | B, DB |
| Shell Size, Connector Layout [x] | 3 |
638-044 Series
...
| Part | Flange Feature | Connector Type | Termination | Contact Finish | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Material | Number of Positions | Connector Style | Contact Finish Thickness | Mounting Type | Color | Dielectric Material | Shell Material, Finish | Material Flammability Rating | Features | Number of Rows | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Solder | Gold | 3 A | -55 °C | 125 °C | Signal | Copper Alloy | 44 | D-Sub High Density | Flash | Through Hole | Black | Polyester Thermoplastic | Nickel Plated Steel | UL94 V-0 | Shielded | 3 | 3 | B DB | ||
EDAC Inc. | Female Screwlock (4-40) Mating Side | Receptacle Female Sockets | Solder | Gold | 3 A | -55 °C | 85 °C | Signal | Copper Alloy | 44 | D-Sub High Density | Through Hole | Black | Polyester Thermoplastic | UL94 V-0 | Shielded | 3 | 3 | B DB | 15 µin | 0.38 µm | ||
EDAC Inc. | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Gold | 3 A | -55 °C | 85 °C | Signal | Copper Alloy | 44 | D-Sub High Density | Free Hanging (In-Line) | Black | Polyester Thermoplastic | UL94 V-0 | Shielded | 3 | 3 | B DB | 30 Áin | 0.76 Ám | |||
EDAC Inc. | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Solder | Gold | 3 A | -55 °C | 85 °C | Signal | Copper Alloy | 44 | D-Sub High Density | Through Hole | Black | Polyester Thermoplastic | UL94 V-0 | Shielded | 3 | 3 | B DB | 30 Áin | 0.76 Ám | ||
EDAC Inc. | Female Screwlock (4-40) Mating Side | Receptacle Female Sockets | Solder | Gold | 3 A | -55 °C | 85 °C | Signal | Copper Alloy | 44 | D-Sub High Density | Flash | Through Hole | Black | Polyester Thermoplastic | Nickel Plated Steel | UL94 V-0 | Shielded | 3 | 3 | B DB | ||
EDAC Inc. | 4-40 | Receptacle Female Sockets | Solder | Gold | 3 A | -55 °C | 85 °C | Signal | Copper Alloy | 44 | D-Sub High Density | Flash | Through Hole | Black | Polyester Thermoplastic | UL94 V-0 | Shielded | 3 | 3 | B DB | |||
EDAC Inc. | Housing/Shell (4-40) | Receptacle Female Sockets | Gold | 3 A | -55 °C | 125 °C | Signal | Copper Alloy | 44 | D-Sub High Density | Flash | Free Hanging (In-Line) | Black | Polyester Thermoplastic | UL94 V-0 | Board Lock Shielded | 3 | 3 | B DB | ||||
EDAC Inc. | Female Screwlock (4-40) Mating Side | Receptacle Female Sockets | Solder | Gold | 3 A | -55 °C | 85 °C | Signal | Copper Alloy | 44 | D-Sub High Density | Through Hole | Black | Polyester Thermoplastic | Nickel Plated Steel | UL94 V-0 | Board Lock Shielded | 3 | 3 | B DB | 15 µin | 0.38 µm | |
EDAC Inc. | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Gold | 3 A | -55 °C | 85 °C | Signal | Copper Alloy | 44 | D-Sub High Density | Free Hanging (In-Line) | Black | Polyester Thermoplastic | UL94 V-0 | Shielded | 3 | 3 | B DB | 15 µin | 0.38 µm | |||
EDAC Inc. | Female Screwlock (4-40) Mating Side | Receptacle Female Sockets | Gold | 3 A | -55 °C | 85 °C | Signal | Copper Alloy | 44 | D-Sub High Density | Flash | Free Hanging (In-Line) | Black | Polyester Thermoplastic | UL94 V-0 | Shielded | 3 | 3 | B DB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 12.69 | |
Description
General part information
638-044 Series
44 Position D-Sub, High Density Receptacle, Female Sockets Connector
