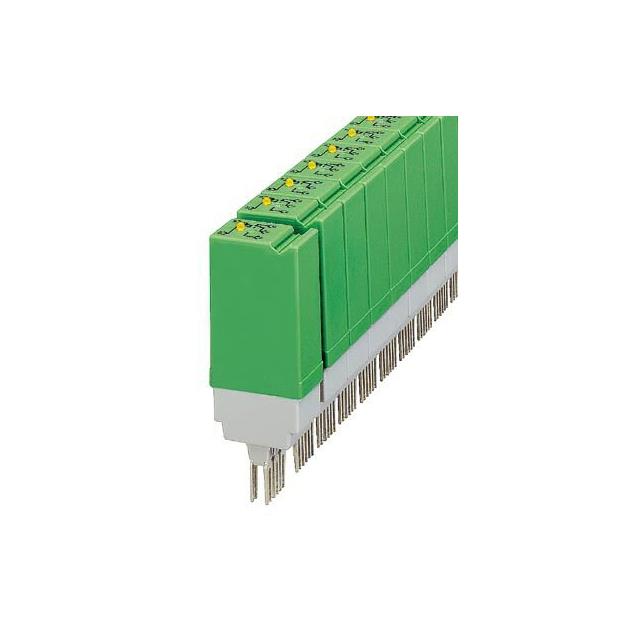

INDUSTRIAL RELAYS ST-REL3-KG230/21
2822406
ObsoletePhoenix Contact
INDUSTRIAL RELAYS ST-REL3-KG230/21
Description
General part information
ST-REL Series
General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil Socketable
Technical Specifications
Parameters and characteristics for this part
| Specification | 2822406 |
|---|---|
| Approval Agency | GOST |
| Coil Current | 5 mA |
| Coil Resistance | 46 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 230 VDC |
| Coil Voltage (Type) | DC, AC |
| Contact Form | C, 1, SPDT, Form |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A |
| Features | Lighted Indicator, Varistor |
| Mounting Type | Socketable |
| Operate Time | 6 ms |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Relay Type | General Purpose |
| Release Time | 7 ms |
| Switching Voltage AC (Max) | 250 VAC |
| Switching Voltage DC (Max) | 250 VDC |
| Termination Style | Plug In |
