R5F11EB8AFP#30

Obsolete

Renesas Electronics Corporation

MICROCONTROLLERS FOR BRUSHLESS DC MOTOR WITH BUILT-IN COMPARATOR

Find alt

Alpha

R5F11EB8AFP#30

Obsolete

Renesas Electronics Corporation

MICROCONTROLLERS FOR BRUSHLESS DC MOTOR WITH BUILT-IN COMPARATOR

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

RL78/G1x Series

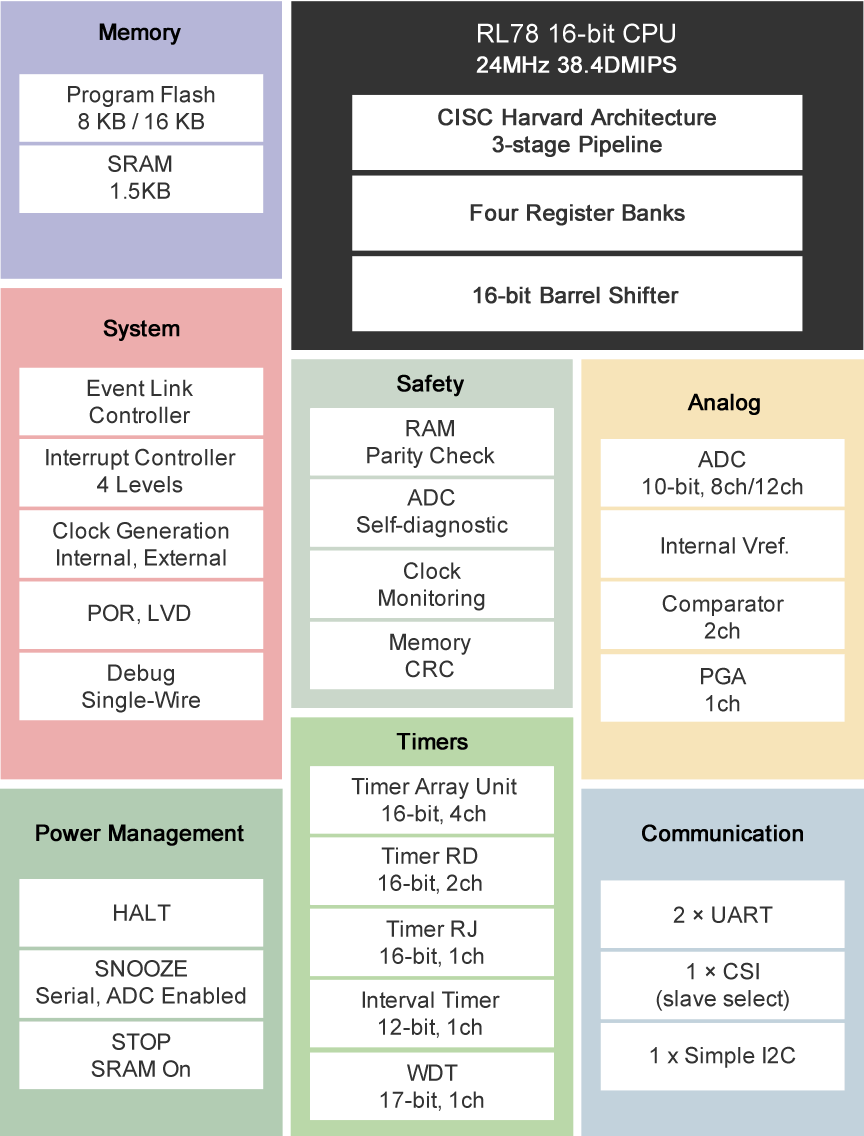

RL78/G1G microcontrollers have a three-phase complementary PWM timer for brushless DC motor control, a comparator for stopping motor rotation when overcurrent is detected and its 8-bit D/A converter for reference voltage, and a PGA (Programmable Gain Amplifier) for controlling amplification factor by software. The number of components can be reduced. The comparator is over eight times faster than that of previous products, and high-speed overcurrent detection can be performed. Built-in safety features (functions that detect illegal hardware operation) make it possible to satisfy the European home appliance safety standard (IEC 60730). The 0.8-mm pitch QFP lineup also helps reduce solder mounting expenses.

Technical Specifications

Parameters and characteristics for this part

Specification	R5F11EB8AFP#30

A/D Channels	8 count
A/D Resolution (bits)	10 bit
Connectivity	USART, UART, I2C, CSI
Core Processor	RL78
Core Size (Bit Width)	16 Bit
Mounting Type	Surface Mount
Number of I/O	25
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	32-LQFP
Package Length	7 mm
Package Name	32-LQFP
Package Width	7 mm
Peripherals	WDT, PWM, POR, LVD
Program Memory Depth	8 K
Program Memory Size	8 KB
Program Memory Type	FLASH
Program Memory Width	8 bit
RAM Size Depth	1.5 K
RAM Size Width	8 bit
Speed	24 MHz
Voltage - Supply (Vcc/Vdd) Maximum	5.5 V
Voltage - Supply (Vcc/Vdd) Minimum	2.7 V

RL78/G1x Series

...

Part	Package Name	Oscillator Type	Program Memory Type	A/D Resolution (bits)	A/D Channels	Connectivity	Operating Temperature (Max)	Operating Temperature (Min)	Core Size (Bit Width)	RAM Size Depth	RAM Size Width	Program Memory Depth	Program Memory Width	Program Memory Size	Package Length	Package Width	Peripherals	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Number of I/O	Speed	Core Processor	Mounting Type
Renesas Electronics Corporation R5F11W67ASM#10	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	512	8 bit	4 K	8 bit	4 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68ASM#50	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68ASM#10	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68DSM#30	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W67DSM#30	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	512	8 bit	4 K	8 bit	4 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68DSM#10	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68DSM#50	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W67DSM#50	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	512	8 bit	4 K	8 bit	4 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RL78/G1G Data Sheet

R5F11EB8AFP#30 | Datasheet
