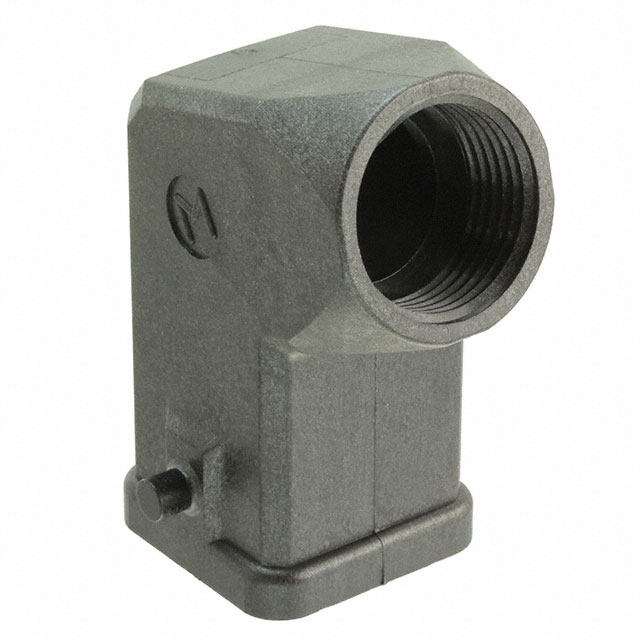

HAN A HOOD ANGLED ENTRY 2 PEGS M20 BLA ROHS COMPLIANT: NA

Find alt
19200030627

19200030627

Active
HARTING

HAN A HOOD ANGLED ENTRY 2 PEGS M20 BLA ROHS COMPLIANT: NA

Find alt

Description

General part information

19200030 Series

Hood Connector Side Entry M20 3A IP44

Technical Specifications

Parameters and characteristics for this part

Specification19200030627
Connector TypeHood
Housing ColorBlack
Housing MaterialPC, Polycarbonate
Ingress ProtectionIP44
Lock LocationLocking Clip (1) on Base Bottom
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Size3A
Size / Dimension Height2.15 in
Size / Dimension Length1.043 in
Size / Dimension Width1.043 in
StyleSide Entry
Thread SizeM20
