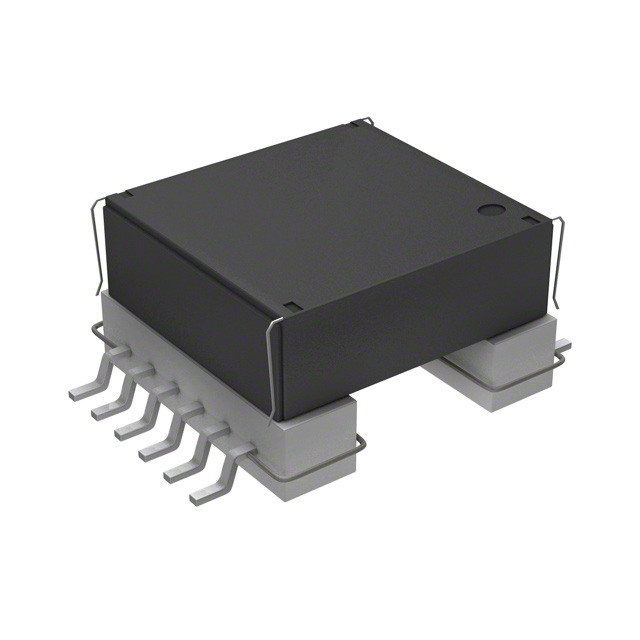

PCA20EFD-U07S003
ObsoleteTDK Corporation
XFMR CAP CHAR CON DC/DC 9.6UH SM
PCA20EFD-U07S003
ObsoleteTDK Corporation
XFMR CAP CHAR CON DC/DC 9.6UH SM
Description
General part information
PCA20EFD-U07S003
Capacitor Charger For Configurable (For DC/DC) SMPS Transformer 500Vrms Isolation Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PCA20EFD-U07S003 |
|---|---|
| Applications | Capacitor Charger |
| Footprint Length | 0.866 in |
| Footprint Width | 1.173 in |
| Height - Seated (Max) | 0.472 in |
| Inductance (Parallel) | 9.6 µH |
| Inductance (Series) | 347 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.866 in |
| Size / Dimension Width | 0.85 in |
| Type | Configurable (For DC/DC) |
| Voltage - Isolation | 500 V |
