FMCA2852-48
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NPLUG 4
FMCA2852-48
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NPLUG 4
Description
General part information
FMCA2852-48

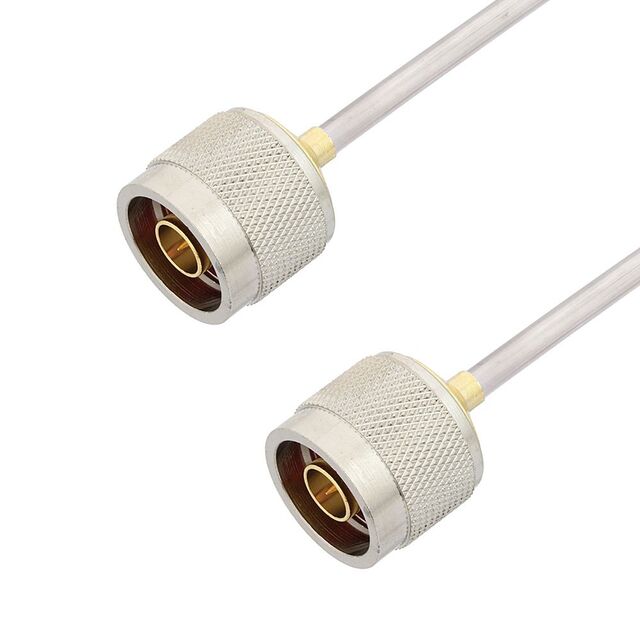

Cable Assembly Coaxial N-Type to N-Type Hand Formable .141 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2852-48 |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.141 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 11 GHz |
| Length | 48 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
