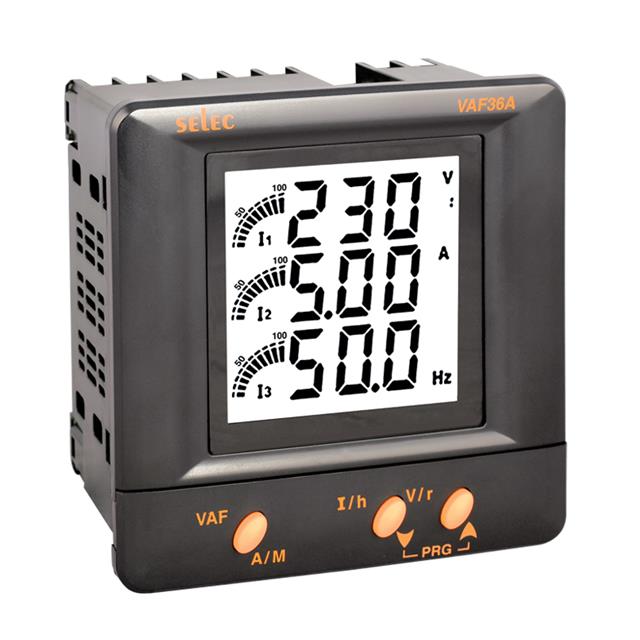

VAF36A-110V-CU

Active

Selec Controls USA Inc.

DIGITAL VAF METER LCD DISPLAY

Search across all available documentation for this part.

Active

Selec Controls USA Inc.

DIGITAL VAF METER LCD DISPLAY

Technical Specifications

Parameters and characteristics for this part

Specification	VAF36A-110V-CU

Display Characters - Height [z]	0.56 in
Display Characters - Height [z]	14.22 mm
Display Type	LCD - Black Characters, Backlight
Measuring Type	Current (3-Phase), Voltage
Number of Characters Per Row	3
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	91.5 mm
Panel Cutout Dimensions [y]	91.5 mm
Termination Style	Screw Terminal
Type	Ammeter, Volmeter
Voltage - Supply	110 VAC/DC

DIGITAL VAF METER LCD DISPLAY

Part	Display Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Measuring Type	Number of Characters Per Row	Type	Display Characters - Height [z]	Display Characters - Height [z]	Voltage - Supply	Termination Style
Selec Controls USA Inc. VAF36A-110V-CU	LCD - Black Characters, Backlight	55 °C	-10 °C	91.5 mm	91.5 mm	Current (3-Phase), Voltage	3	Ammeter, Volmeter	0.56 in	14.22 mm	110 VAC/DC	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 56.83

General part information

Ammeter, Voltmeter LCD - Black Characters, Backlight Display Panel Mount

Technical documentation and resources

No documents available
