Specification	1623356

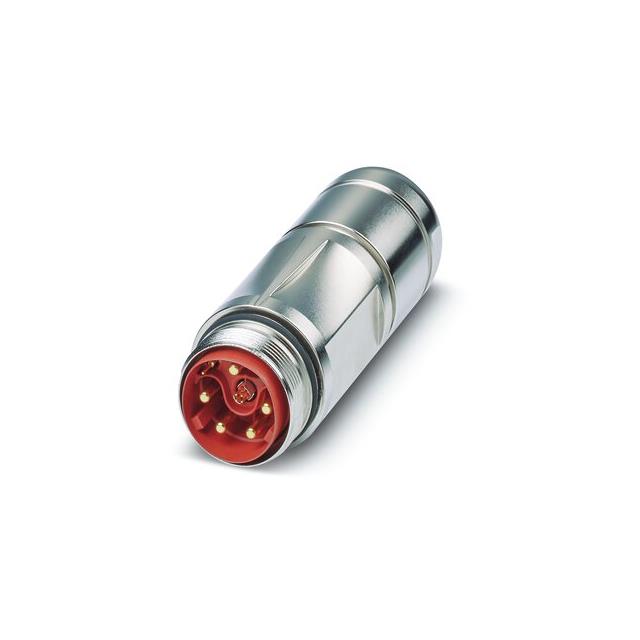

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Size (Data)	0.8 mm
Contact Size (Power)	3.6 mm
Contact Type	Crimp
Fastening Type	Threaded
Features	Backshell
Housing Color	Silver
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included, Insert Not Included
Number of Positions	13
Operating Temperature (Max)	115 °C
Operating Temperature (Min)	-40 °C
Orientation Angle	1 °
Position Types	PE, Power, Data
Shell Material	Gadolinium-Zinc
Shell Size - Insert	M40-13
Shielding	Shielded
Type	For Male Pins
