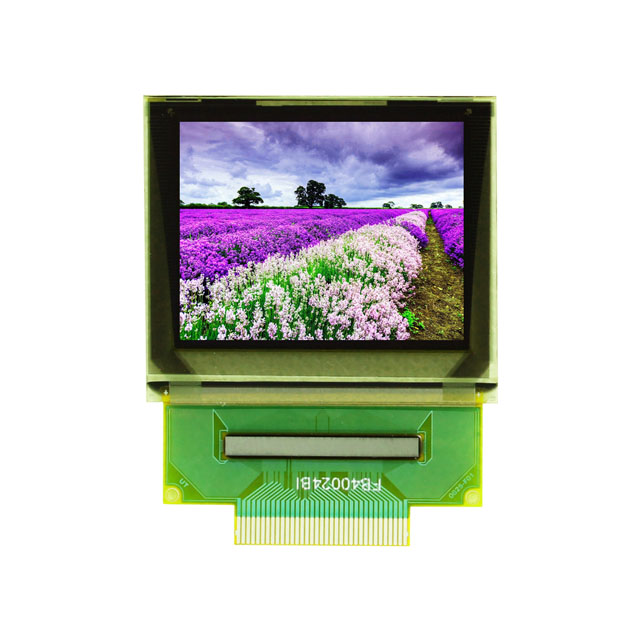

DLC0145BNOF
ActiveDLC Display Co.,Ltd
1.45" PMOLED 160XRGBX128 COLOR
DLC0145BNOF
ActiveDLC Display Co.,Ltd
1.45" PMOLED 160XRGBX128 COLOR
Description
General part information
DLC0145BNOF
Graphic LCD Display Module Red, Green, Blue (RGB) OLED - Passive Matrix Parallel, 6-Bit/8-Bit/9-Bit (RGB), SPI 1.45" (36.83mm) 160 x 128
Technical Specifications
Parameters and characteristics for this part
| Specification | DLC0145BNOF |
|---|---|
| Controller Type | SEPS525-F00 |
| Diagonal Screen Size | 1.45 in |
| Display Type | OLED - Passive Matrix |
| Dot Pitch Height | 0.06 mm |
| Dot Pitch Width | 0.18 mm |
| Dot Pixels (Horizontal) | 160 pixels |
| Dot Pixels (Vertical) | 128 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | SPI, Parallel, 6-Bit/8-Bit/9-Bit (RGB) |
| Touchscreen | Non-Touch |
| Viewing Area Height | 25.02 mm |
| Viewing Area Width | 30.78 mm |
